Fittings for spiral-reinforced PVC Conduits PSRSC16-FMCSS-M20

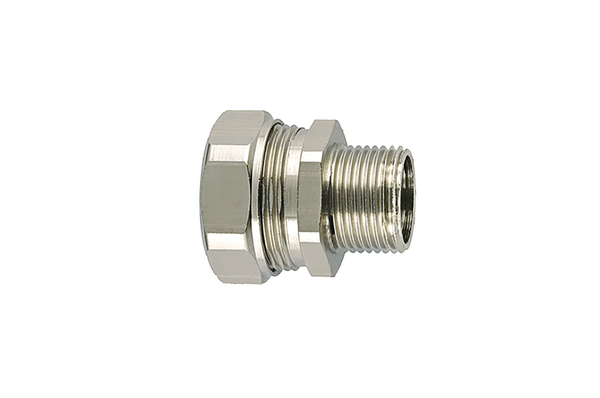

PSRSC-FMCSS compression fitting, Article number: 166-41302


  • Multipart stainless steel (SS316) compression fitting including elastomeric seal
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Certifications & Approvals


Straight fitting, external thread, stainless steel (SS316).
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

PSRSC-FMCSS compression fitting is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Straight Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø16mm M20
Features and Benefits Straight fitting, external thread, stainless steel (SS314). Fulfils IP66, IP67 and IP68 with PRSCS conduits.
Pack Cont. 1pc.
Package Quantity per Bag
Product Family PSRSC-FMCSS compression fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Type of connection Thread
Variant Straight
A/F Nut (A/F3) 26mm
Height (H) 26mm
Length (L) 33.0mm
Lowest inner diameter 10.7mm
Min. Bore Size (B) 10.7mm
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
Thread Length (TL) 12.0mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous goods No
IP-Rating IP68
Material Stainless Steel (SS316), Polyamide 6 (PA6)
Material of fitting ETIM Metal (MET)
Operating Temperature - °C -40 °C to +135 °C, (+140 °C, 500 h)
EAN / GTIN 4031026411071
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00061
Packaging 1 - Weight (kg) 0.07kg
Packaging 1 - Width (m) 0.16m
Weight 0.07kg
ETIM 5.0 EC001178
ETIM 6.0 EC001178
