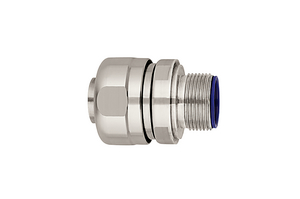

Fittings for spiral-reinforced PVC conduits PSRSC20-FMCFFSS-M20

PSRSC-FMCFFSS compression fitting for food-processing applications, Article number: 166-41602

Features

  • Multipart stainless steel (SS316) compression fitting including elastomeric seal
  • Rounded edges, smooth surfaces and no crevices where food or other substances can collect or bacteria grow
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Certifications & Approvals

Application

Straight fitting, external thread, stainless steel (SS316).
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

PSRSC-FMCFFSS compression fitting for food-processing applications is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Stainless steel compression fitting, external thread, M16
GLOBAL PART NAME (auto set) PSRSC20-FMCFFSS-M20-SS316/PA6-ML
Pack Cont. 1pc.
Package Quantity per Bag
Product Family PSRSC-FMCFFSS compression fitting for food-processing applications
Product Group Fittings for spiral-reinforced PVC conduits
A/F Nut (A/F3) 32mm
Length (L) 46.0mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 13/16"
Thread Length (TL) 12.0mm
Thread Size M20
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Stainless Steel (SS316), Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Operating Temperature - °C -50 °C to +135 °C
Specifications
Specifications EN 1672-2, EN ISO 14155
EAN / GTIN 4031026513607
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1
Packaging 1 - Type pieces
Packaging 1 - Volume (m³) 0.00088
Packaging 1 - Weight (kg) 0.127kg
Packaging 1 - Width (m) 0.12m
Weight 0.127kg
ETIM 5.0 EC001178
ETIM 6.0 EC001178
