Fittings for spiral-reinforced PVC Conduits PSRSC25-90FMC-M25

PSRSC-90FMC 90° compression fitting, Article number: 166-41205

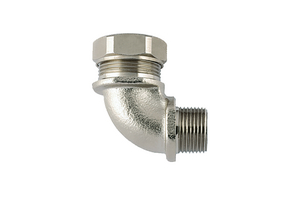

HelaGuard PCS-90FMC 90° Elbow Compression Fitting.
1 more image to PSRSC25-90FMC-M25
HelaGuard PCS-90FMC 90° Elbow Compression Fitting.

Features

  • Multipart 90° compression fitting including elastomeric
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Certifications & Approvals

Application

90° fitting, fixed external thread, nickel plated brass.
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

PSRSC-90FMC 90° compression fitting is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits 90° ø25mm M25
Features and Benefits 90° fitting, fixed external thread, nickel plated brass. Fulfils IP66, IP67 and IP68 with PRSCS conduits.
GLOBAL PART NAME PSRSC25-90FMC-M25-NPB/PA6-ML
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family PSRSC-90FMC 90° compression fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Type of connection Thread
Variant 90°-elbow
A/F Nut (A/F3) 35mm
Height (H) 35mm
Lowest inner diameter 18mm
Min. Bore Size (B) 18.0mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Outside ∅ max (OD max.) 35mm
Thread Length (TL) 14.0mm
Thread Size M25
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP68
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Material of fitting ETIM Metal (MET)
Operating Temperature - °C -40 °C to +135 °C, (+140 °C, 500 h)
Specifications
EAN / GTIN 4031026411019
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00168m³
Packaging 1 - Weight (kg) 1.5kg
Packaging 1 - Width (m) 0.16m
Weight 1.5kg
ETIM 5.0 EC001178
ETIM 6.0 EC001178
