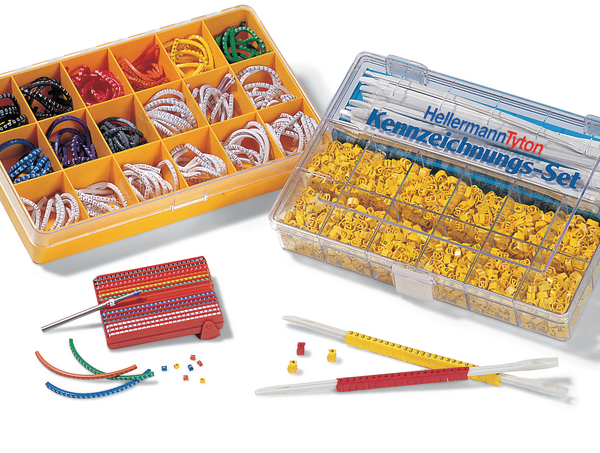

Cable Marker Kit (25 markers for bundle ∅ 1-3: 0-9, A-Z, standard electrical symbols)
Art.-No. 518-06013 | HGPC1-3-PVC-Special Details

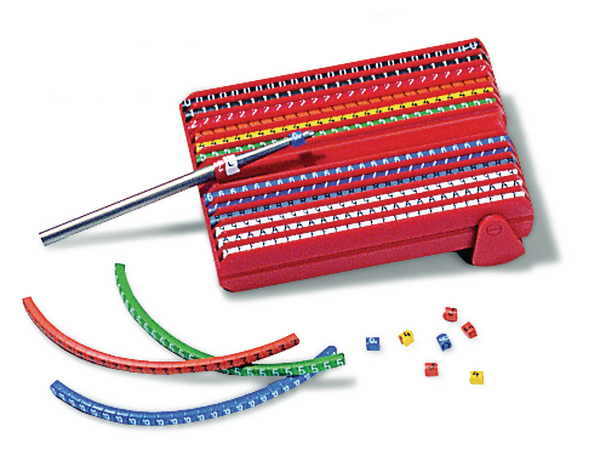

  • Handy pocket sized cassette
  • Contains 25 markers of each of the most popular characters and symbols and a PTFE coated metal applicator tool
  • Ideally suited for on-site installation, services and repair

Request your individual offer now

Application Helagrip is used to mark cable and wire. Ideally suited to panel building, mass transit, utilities, telecommunications and electrical contracting. Markers are available as standard in international resistor colour code and yellow material marked in black. White material marked in black is available to special order. Characters are 0-9, A-Z and standard electrical symbols.
Application Method A text legend is made by threading required markers onto the wire by hand or by using an especially designed applicator tool. There is a choice of two applicator tools; a PTFE coated metal applicator tool (TJC) or a plastic applicator tool (AD). Both tools are ideal for pre-loading the required text legend. Simply slide the wire into the tool aperture and slide the markersover the tool and onto the wire.
Application Tool TJC1-3
Colour White (WH), yellow (YE), international resistor colour code (CC)
Colour of Print Black (BK)
Content HGCC1-3: 50 each of markers 0 to 3 and 25 markers size 4 to 9 in the international resistor colour code; 25 each of A, E, L, N, R, S, T, +, - and in white; PTFE-coated applicator tool TJC.
HGCC4-9: 25 each of markers 0 to 9 in the international resistor colour code; A, E, L, N, R, S, T, +, - and in white; PTFE-coated TJC applicator tool. Individual sets available as an option.
The refill pack for the cassette contains one basic set without TJC applicator tool.
Fixation Method Suspend
Local order number HGCC1-3
Marking Text CC 0-9, A,E,L,N,R, S, T + -
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
Pack Cont. 1pc.
Package Content packed in pcs.
PART DESCRIPTION HGPC1-3-PVC-Special
Short Description Cable Marker Kit (25 markers for bundle ∅ 1-3: 0-9, A-Z, standard electrical symbols)
Variant Other
With label space No
Bundle Diameter max (Metric) 3.00mm
Bundle ∅ 1.0-3.00mm
Bundle ∅ min. 1.0mm
Length (L) 3.5mm
Print Method Hot foil
Flammability UL 94 V0 (3 mm)
Operating Temperature -65 °C to +105 °C, intermittent +135 °C
Pre-Printed Yes
Specifications
Specifications BS-2782-540B, BS-6746C, IEC 757
Country of Origin GB
Customs Number 39269098
GTIN-13 / EAN 5022660520167
Packaging 1 - Height (m) 0.030m
Packaging 1 - Length (m) 0.102m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00024
Packaging 1 - Weight (kg) 0.0770kg
Packaging 1 - Width (m) 0.078m
EFO Norway block number 020102
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
