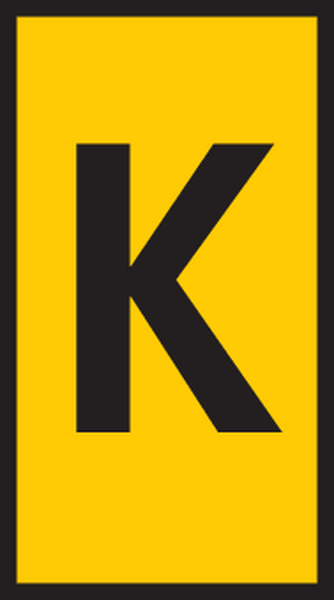

P20 Marker-PVC-YE : P20 Marker
Art.-No. 604-00579 | P20 Marker-PVC-YE Details

  • Thin wall
  • Light, very flexible, and space effective

Request your individual offer now

Application For close density wiring applications where the thin wall section takes up the minimum amount of space.
Application Method In order to speed up the application of a series of markers, a range of TJC applicator tools are available. Thread the required markers onto the applicator tool, insert the wire into the end of the tool and then simply slide the markers along the tool and onto the wire.
Application Tool TJC1-3
Colour Yellow (YE)
Colour of Print Black (BK)
Fixation Method Suspend
Local order number MP20X5YW K
Marking Text K
Material Flexible Polyvinyl Chloride, cadmium free (PVC)
Pack Cont. 1000pcs.
Package Content packed in Bag
PART DESCRIPTION P20 Marker-PVC-YE
Variant Other
With label space No
Bundle ∅ 2.0mm
Bundle ∅ min. 2.0mm
Diameter (D) 2.0mm
Length (L) 5.0mm
Print Method Hot foil
Wall (WT) 0.35mm
Operating Temperature -65 °C to +105 °C, intermittent +135 °C
Pre-Printed Yes
Self extinguishing Yes
Specifications
Specifications BS-3858 Type 3, IEC 684-3-101/104, UL 224
Country of Origin GB
GTIN-13 / EAN 5022660562822
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
