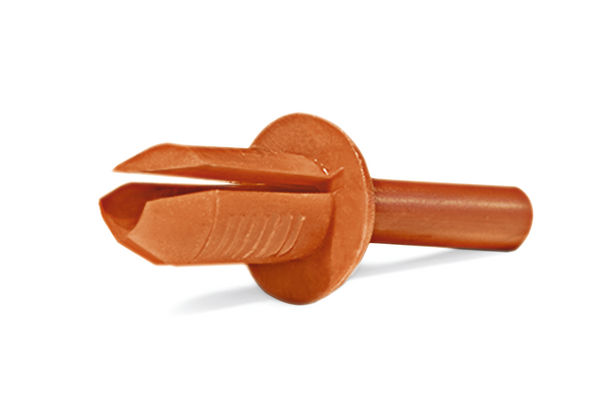

For installing wiring ducts into fixing holes HTWD-R6

HelaDuct HTWD-R4 and HTWD-R6 rivets, Article number: 181-42500

Features

  • Very good mechanical properties
  • Good resistance to vibration
  • Easily and rapidly applied with HTWD-RT4 and HTWD-RT6 rivet tools
  • Colour-coded for easy identification for use with rivet tools

Certifications & Approvals

Application

HTWD-R4 and HTWD-R6 are used to rapidly mount and secure wiring ducts into fixing holes without the use of screws.

HelaDuct HTWD-R4 and HTWD-R6 rivets is suitable for following markets and industries

Application Tool HTWD-RT6
Colour Orange (OG)
Description Short (BMEcat) (max. 150 characters) Wiring duct rivet, 6.0 - 6.4 mm, PA6, orange
GLOBAL PART NAME (auto set) HTWD-R6-PA6-OG
Pack Cont. 500pcs.
Package Quantity per pieces
Product Family HelaDuct HTWD-R4 and HTWD-R6 rivets
Product Group For installing wiring ducts into fixing holes
Type R6
for Hole ∅ (FH) 6.0 - 6.4 mm
Height (H) 16.0mm
Height (H2) 14.0mm
Height (H3) 13.5
∅ (D) 11mm
∅ (D2) 7.5mm
∅ (D3) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6 (PA6)
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026126906
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.83m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01494
Packaging 1 - Weight (kg) 0.85kg
Packaging 1 - Width (m) 0.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 360000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 633.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.85kg
ETIM 5.0 EC002450
ETIM 6.0 EC002450
