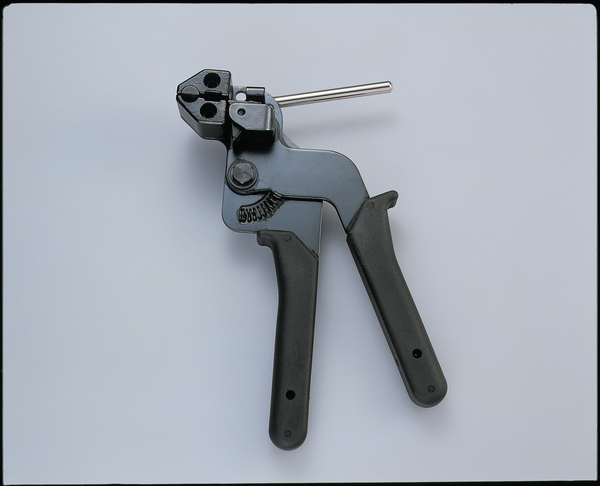

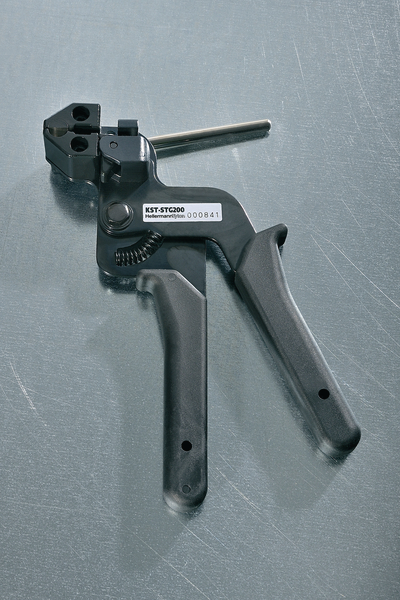

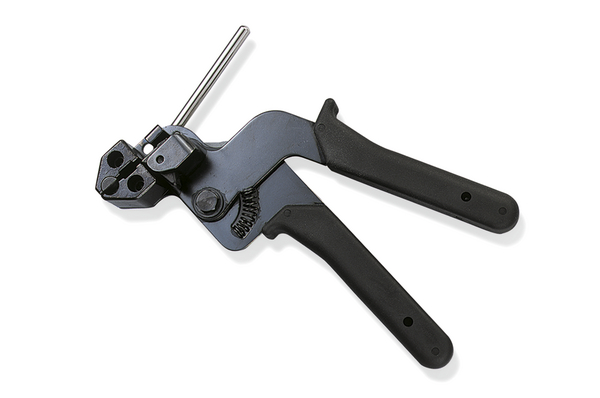

Manual tensioning tool for metal ties MBT-Series KST-STG200

KST-STG200 up to 12.3 mm strap width, Article number: 110-09950

Features

  • Tough metal tool
  • Operator controlled tensioning
  • Cut off by pulling the hand lever

Certifications & Approvals

Application

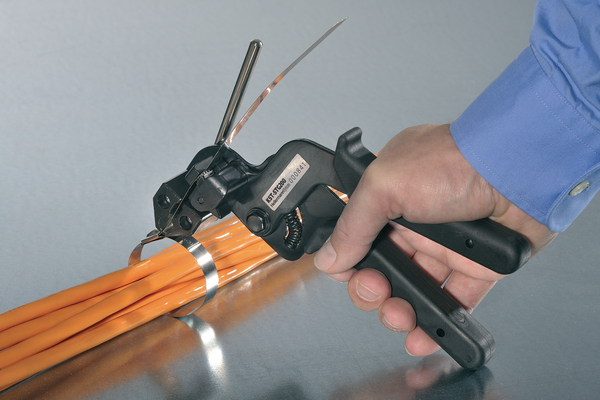

The KST-STG200 application tool is designed for installing heavy duty stainless steel cable ties within a range of industries such as shipbuilding, oil rigs, mining and mass transit. The tensioning strength can be adjusted while pulling the trigger. The tool is easy to handle and far more reliable than trying to tension the ties by hand.

KST-STG200 up to 12.3 mm strap width is suitable for following markets and industries

Colour Metal (ML), Black (BK)
Description Short (BMEcat) (max. 150 characters) Manual Tensioning Tool for Metal Ties up to 12.3 mm strap width
For Cable Tie Width 4.5 - 12.3mm
GLOBAL PART NAME KST-STG200-BK/ML
Operation manually
Pack Cont. 1pc.
Package Quantity per Box
Product Family KST-STG200 up to 12.3 mm strap width
Product Group Manual tensioning tool for metal ties MBT-Series
Short Description Manual Processing Tool for Stainless Steel Cable Ties - KST-STG200
Strap Thickness max. 0.3mm
Tension Setting Tools Manual
Tool property Manual clipping
Tool suitable cable tie material Stainless steel
Type KST-STG200
Strap Width max. 12.3mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Specifications
EAN / GTIN 4944387938036
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 1
Packaging 1 - Type pieces
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.647kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 4.15m
Packaging 3 - Length (m) 4.5m
Packaging 3 - Qty 20
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 61.6275
Packaging 3 - Weight (kg) 13.44kg
Packaging 3 - Width (m) 3.3m
Packaging 4 - Height (m) 0.975m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.936
Packaging 4 - Weight (kg) 155.4kg
Packaging 4 - Width (m) 0.8m
Weight 0.647kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
