Electrical installation solutions by HellermannTyton: innovative, safe and well thought-out


Forward-looking electrical installation – the HellermannTyton range for professionals

Professional and skilful electrical installation requires not only well-trained specialists, but also a well thought-out range of products. To help electricians and engineers make their work more safe and efficient, HellermannTyton is constantly developing practical solutions for the field of electrical installation. With the professional cable routing tool CableScout+, for example, cables can be installed more quickly. Sophisticated push-in wire connectors from the HelaCon series guarantee quick and safe cable installation in house and building applications. Electrical tapes from the HelaTape family, available in different qualities, simplify the insulating, bundling, sealing and marking of cables. The product portfolio in the field of electrical installation is rounded off by the SpotClip family, which includes various downlight covers for mounting downlights in dry and acoustic ceilings.


For HellermannTyton, only high-quality materials with a long service life are used to ensure that the respective electrical installation fulfils even the highest safety requirements and is durable. As an example, particularly the safety aspect in electrical installation is taken into account at a very early design stage of individual products.

The transparent push-in wire connectors from the HelaCon series allow visual inspection of the connection – an important safety feature for the inspection and approval of electrical installations. Likewise, the expert for electrical installation includes various structural demands in its planning. Therefore, our portfolio also includes push-in wire connectors that can be used on-wall or flush-mounted and in all kinds of junction boxes. Furthermore, HellermannTyton provides solutions that guarantee easy handling while ensuring processing safety in electrical installations, even in areas that are hard to reach and especially when it comes to installing downlights.

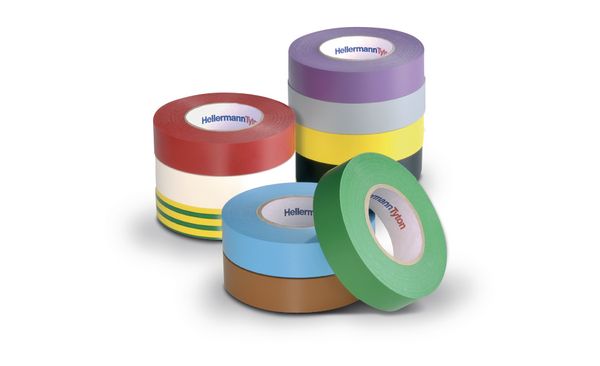

Electrical tapes HelaTape

Electrical Installation Electrical Tapes

Within electrical installation, HelaTape can be used particularly for insulating, attaching, bundling, sealing and marking cables. Various sizes, colours and materials support the professional use of HelaTape in electrical installation: as a fast, reliable help for repairing cables, as a tool for sealing connection points, as a warning for temporarily laid cables or as a clearly visible cable marker. Thus, the PVC HelaTape Flex insulating tapes are coated with adhesives that are specially adapted to the respective application areas, emphasising their mechanical properties for electrical installation. HelaTape Power is mainly rubber-based and is used for protection, insulation and sealing in electrical installation. The product family is supplemented with HelaTape Shield, which was specially developed for repairing electrical shields. HellermannTyton also offers HelaTape Tex, a low-reflection fabric tape for use in the construction of exhibition stands and stage design.

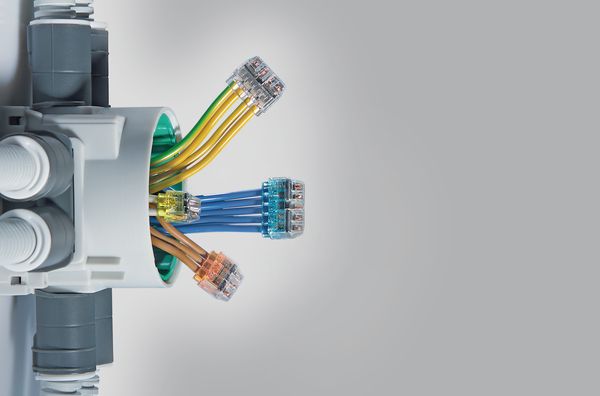

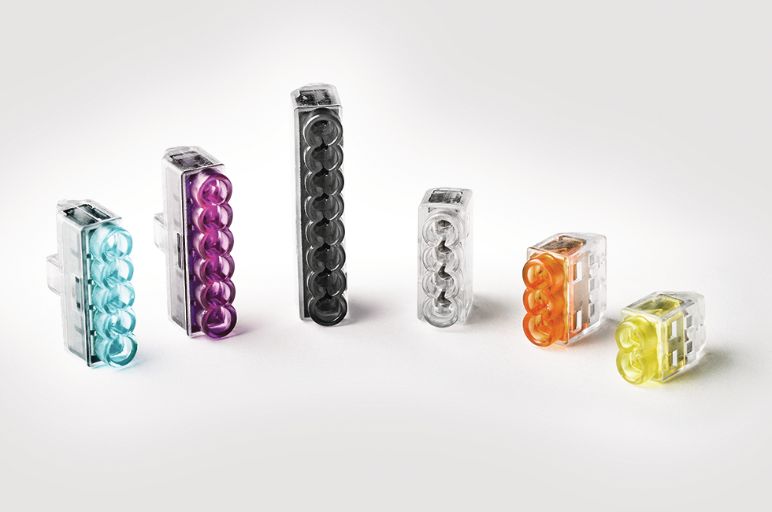

Push-in wire connectors HelaCon

Electrical Installation Wire Connectors

HelaCon Plus Mini, HelaCon Easy and HelaCon Lux push-in wire connectors support professional electrical installation in homes and buildings. For example, the new and innovative HelaCon Plus Mini allows stranded and solid wires to be worked on easily, providing relief in difficult situations such as overhead installation. Different colours make it easy to distinguish the push-in wire connectors during electrical installation. With its compact design, HelaCon Easy is particularly suitable for electrical installation in tight spaces and is intended only for solid conductors. HelaCon Lux, the innovative lighting connector, is used for installing lights where solid conductors from concealed wiring are connected with stranded lighting cables.

Cable rods Cable Scout+

Electrical Installation Cable rods Cable Scout+

CableScout+ is a multi-functional tool that simplifies any kind of cable routing. These cable rods are available in various sets, each consisting of a robust case and a large number of useful accessories. Extensions, adapters, hooks, guide eyelets, lights, magnets and cable grips make the CableScout+ cable installation system a universal tool in electrical installation. With the help of fiberglass-reinforced rods, cable routing is much easier even in installation areas that are difficult to access, so that their use ensures considerable time savings.

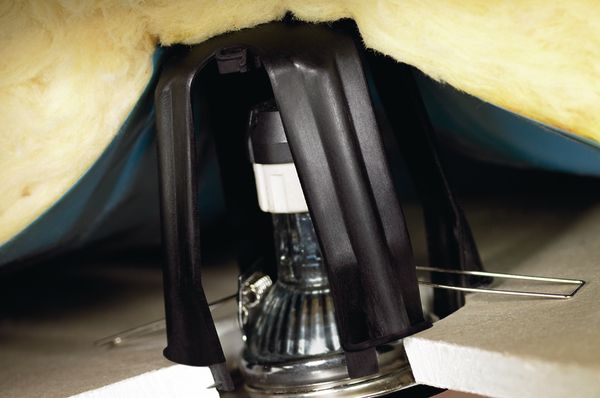

Downlight covers SpotClip

Electrical Installation Downlight Covers Spotclip

Spotlights installed in the ceiling develop so much heat that the insulating materials ignite due to heat accumulation and overheating; a dangerous fire can result. To prevent this, HellermannTyton designed the SpotClip, a downlight cover for recessed spotlights. The innovative downlight covers can be easily built into panels or plasterboard within the framework of electrical installation. Thus, air can circulate around the light and dangerous overheating is avoided. In addition, the covers for recessed spotlights can also have a positive effect on the service life of the bulbs.

Electrical tapes HelaTape

Electrical Tapes HelaTape

HellermannTyton offers a comprehensive range of PVC and rubber tapes for bundling, insulating, fixing, sealing and marking applications round all kinds of electrical applications. PVC-based tapes are designed for low voltage applications and available in a variety of dimensions and colours.
Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. Cloth tapes are extremely strong and ideal for identification, fixing and repair purposes.

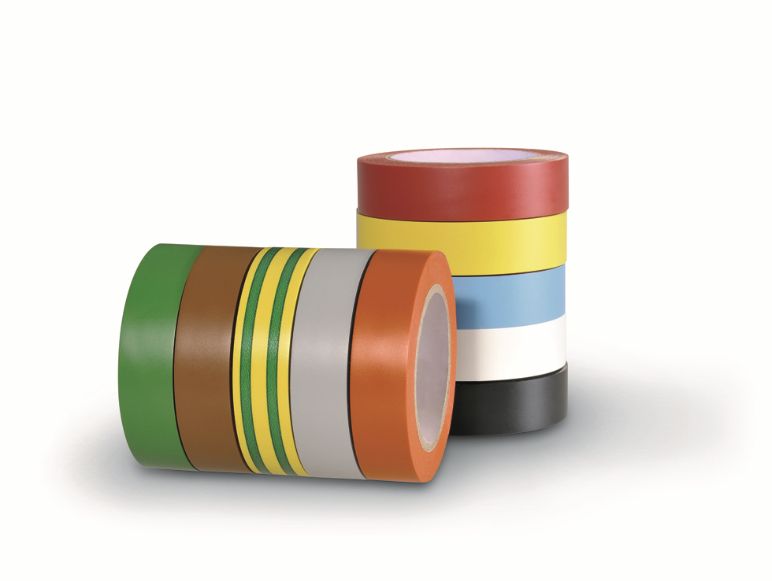

PVC tapes

Electrical Tapes HelaTape PVC

PVC-based electrical tapes are designed for low voltage applications and available in a variety of dimensions and colours.

The range of HelaTape is comprehensive and used for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. They are available in a variety of dimensions and colours.

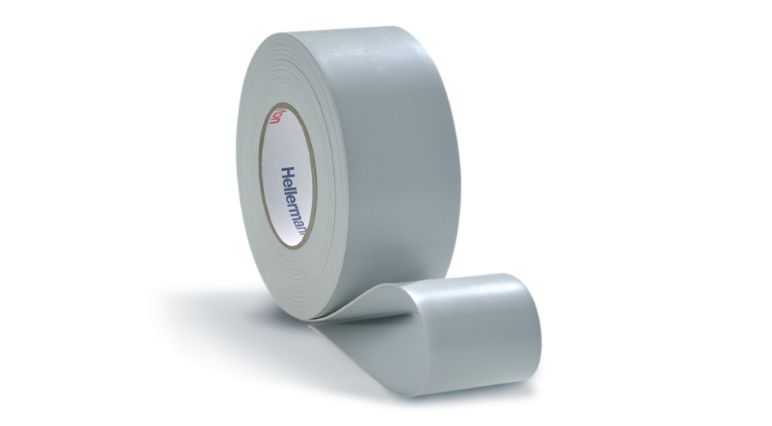

Rubber tapes

Electrical Tapes HelaTape Rubber

Electrical tapes made of rubber are best suited for sealing and insulating of cables and splices from low to very high voltage.  The HelaTape Power 650 self-amalgamating tape is a low voltage mastic tape and used for quick, void-free insulation layering.

HelaTape Power 800 is a self-amalgamating high voltage silicone rubber tape resistant to creepage and surface erosion which fuses into solid mass after application.  Weather, UV and oil resistant.

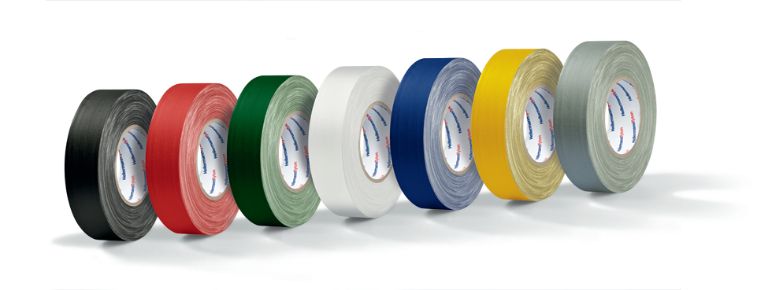

Textile tapes

Electrical Tapes HelaTape tex

Textile tapes are available in different colours and dimensions and useful for various applications. They are highly tear-resistant in longitudinal direction and easy to tear off by hand in transverse direction.  High quality PE coated cloth tape with good weather resistance.

Wire connectors HelaCon

Wire connectors HelaCon

Supporting installers’ daily work: Connecting electrical lines and equipment in housing application require appropriate devices for fast, easy, safe, and reliable use. HellermannTyton offers HelaCon – a range of products to connect and protect conductors and lights. HellermannTyton is a global manufacturer who offers high performance fastening, connecting, routing, protecting, and identifying solutions to diverse markets.
For our customers we develop market solutions that uniquely meet an industry's needs solving an application requirement, saving installation and component costs, and improving the quality of the end product - no matter what your industry.

HelaCon Easy

Wire connectors HelaCon easy

Thanks to the compact design wire connectors of the HelaCon Easy range connect conductors in housing installations where space is limited.  They are used for fast, easy and reliable connection, distribution of cable and conductors in the field of electrical installations within junction boxes and control panels.  They offer a variety of input poles for flexible application.

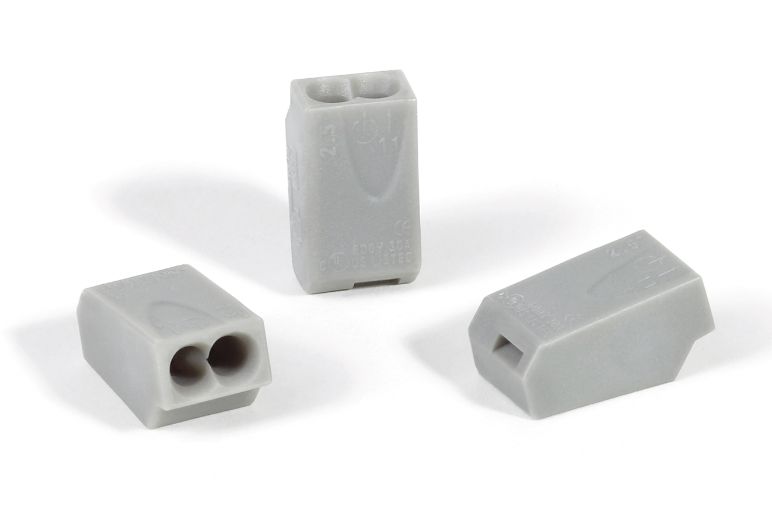

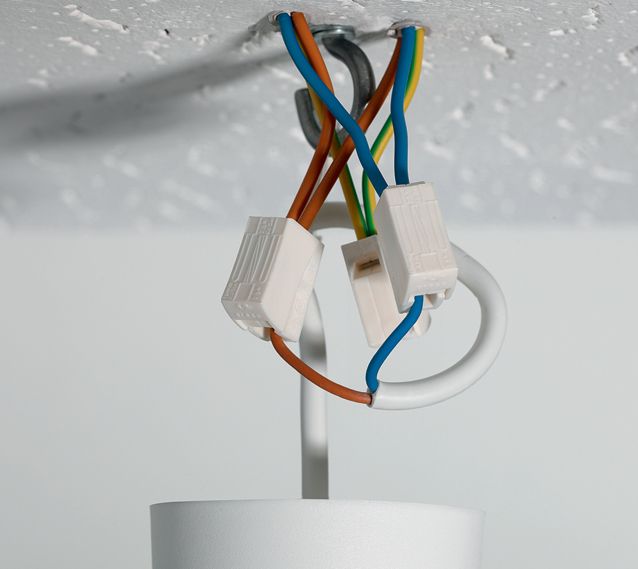

HelaCon Lux

Wire connectors HelaCon lux

Wire connectors HelaCon Lux fit best to connect solid with fine-stranded wire especially in lighting installations.  Combines push-in connector with lock/unlock spring mechanism.  Used with typical voltage current of 450V/24A and has either one or two inputs for solid conductor on installation side.

Offers a tool free application for easy, time saving, safe connection used especially for overhead work and when wires are difficult to access.

HelaCon Plus Mini

Wire connectors HelaCon Plus Mini

The innovative double spring design of the wire connectors HelaCon Plus Mini offers the best possible solution when convenient processing and maximum safety is required to connect conductors in housing installations.  40% smaller - space saving design.

Easy access to voltage test entry and innovative port shape design.  Correct installation can be visually checked through transparent housing.  Different colour codes for easy identification of size.

Cable rods Cable Scout+

Cable rods Cable Scout+

The Award Winning Cable Installation System Cable Scout+ is a market leading highly effective professional cable installation tool, which has been proven to make significant savings on a wide range of cable installation work. It enables many installation jobs to be carried out single-handed, reduces discruption in busy workplaces and increases safety by reducing the need to use ladders.

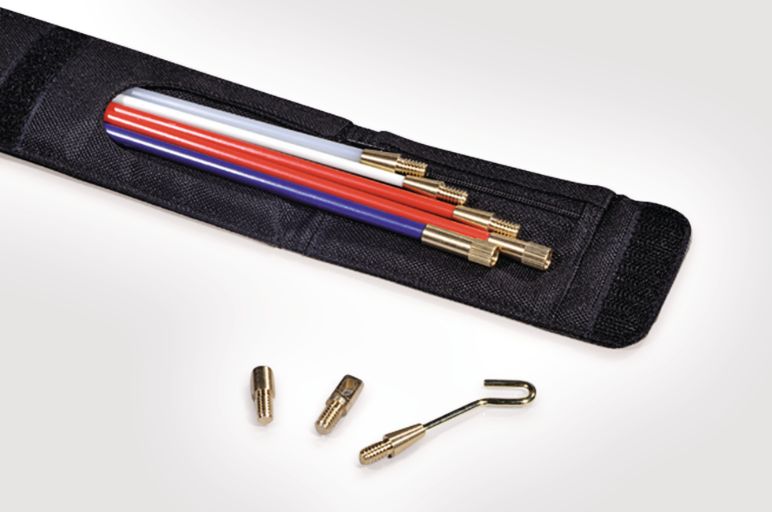

Handy Set

Cable rods Cable Scout+ handy set

The Handy Set is made up for fitting in a tool box.



TYPE Description Content Rods Rod Capacity Accessories Article-No.
CS-SH Handy set

1 rod x 40cm (white)
2 rods x 40cm (red)
1 rod x 40cm (blue)

1.6m 40cm white flex lead, domed bullet, mini hook and mini eye 897-90003

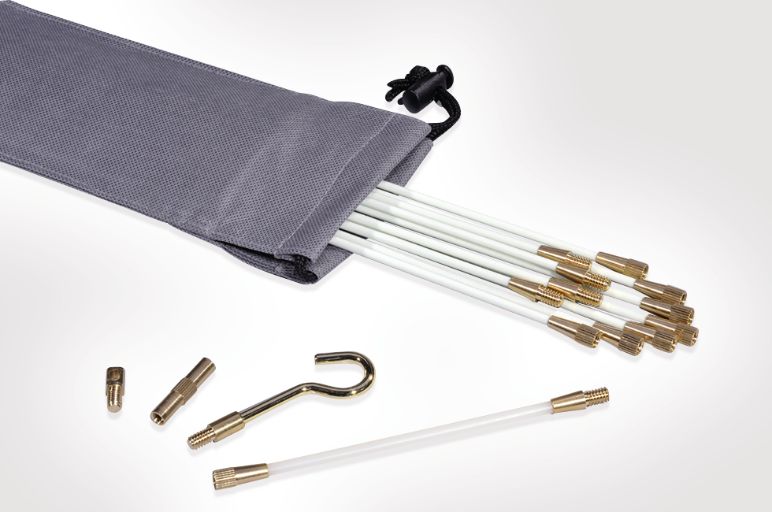

Basic Set

Cable rods Cable Scout+ basic set

The Basic Set is designed to perform basic cable installation.

TYPE Description Content Rod Capacity Accessories Article-No.
CS-SB Basic Set 10 rods x 1m (white) 10.0m 15cm white flexi lead, gender changer, tuff hook and mini eye 897-90000

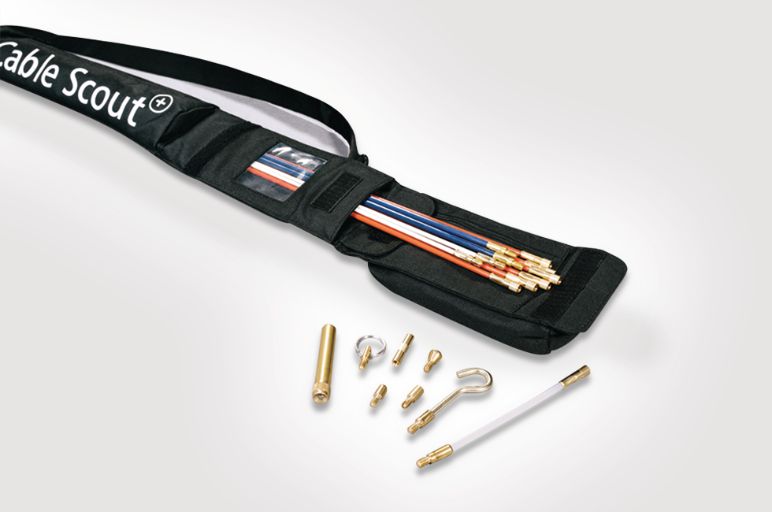

Deluxe Set

Cable rods Cable Scout+ deluxe set

The Deluxe Set is a comprehensive set aimed for carrying out larger installations.

TYPE Description Content Rod Capacity Accessories Article-No.
CS-SD Deluxe Set 2 rods x 1m (white)
6 rods x 1m (red)
2 rods x 1m (blue)
10.0m 15cm white flexi lead, split ring, gender changer, tuff hook, mini eye, domed bullet, flat bullet, beam and single magnet 897-90001



Downlight covers SpotClip

Downlight covers SpotClip

SpotClip is a unique product that has been developed to support downlights installation and ensures that a safe distance is kept between the downlight, insulation foil and roof insulation.

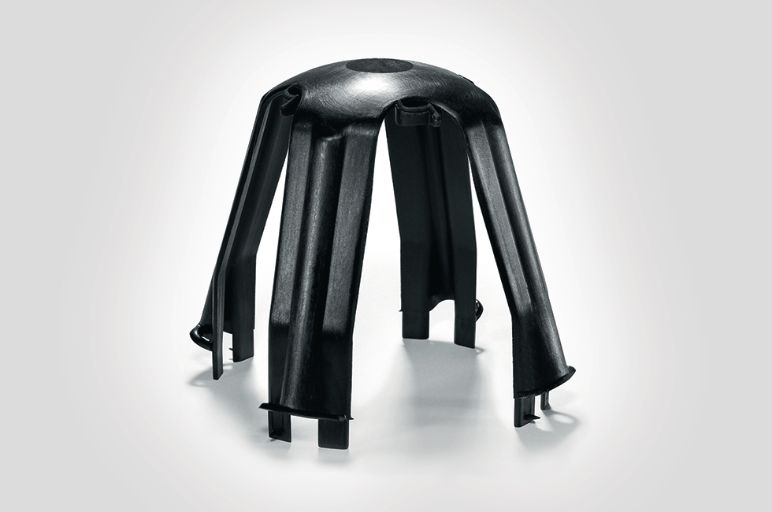

SpotClip-I

Downlight covers SpotClip-I

SpotClip-I has been developed for mounting downlights in dry montarless construction and acoustic construction applications.

SpotClip-I consists of non-flammable, fibre-glas reinforced polyamide and offers a number of thermal and mechanical benefits and can even be installed retrospectively.  Can be used in ceiling cavities with diameters of 62mm to 90mm.  Spot-Clip-I reduces the risk of damage being caused to any insulation material as a result of overheating and heat accumulation and may also have a positive effect on the life time of the lamp.

TYPE Colour Pack Cont. Article-No.
SpotClip-I Black 10 pieces 148-00076

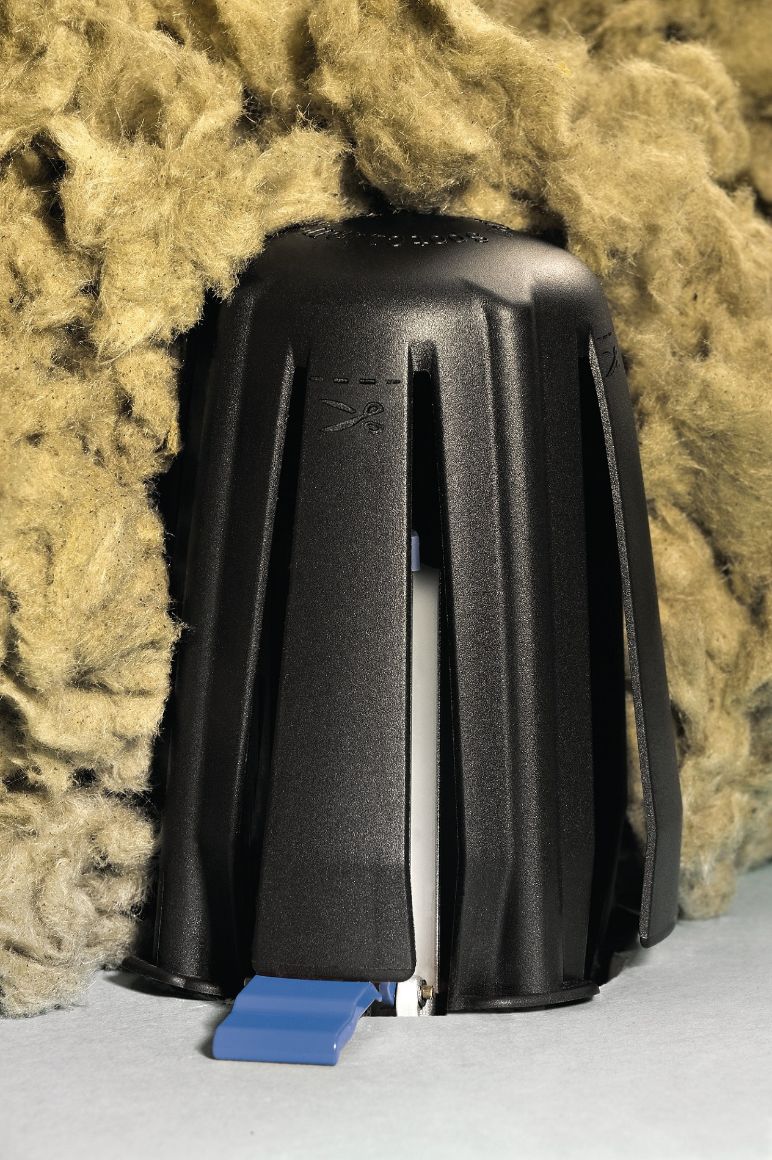

SpotClip-II

Downlight covers SpotClip-II

SpotClip-II has been developed for use with large halogen and LED spotlights up to 95mm high and ensures safety distance between downlight, damp-proof foil and insulation material. The legs can be easily removed to facilitate cable installation.

TYPE Colour Pack Cont. Article-No.
SpotClip-II Black 10 pieces 148-00098

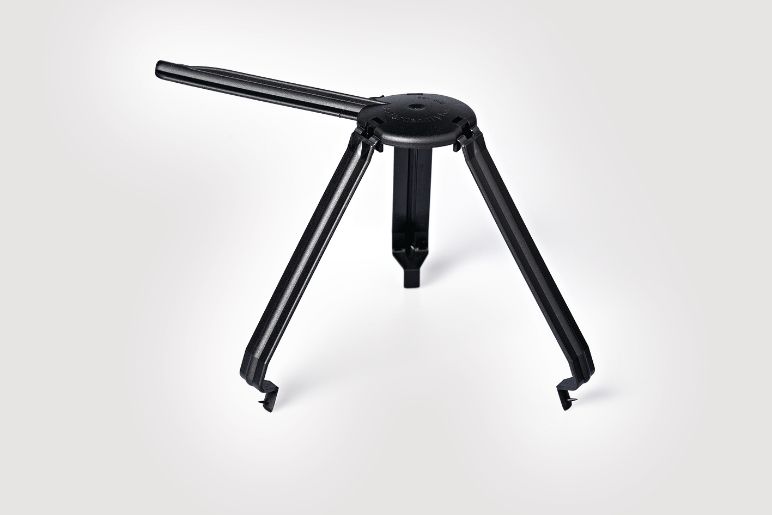

SpotClip-III

Downlight covers SpotClip-III

SpotClip-III is a mounting support for the external power supply unit and provides more space for the downlight installation.  If the spot light is without external power the additional straight leg can be easily cut and removed manually.

TYPE Colour Pack Cont. Article-No.
SpotClip-III Black 5 pieces 148-00121

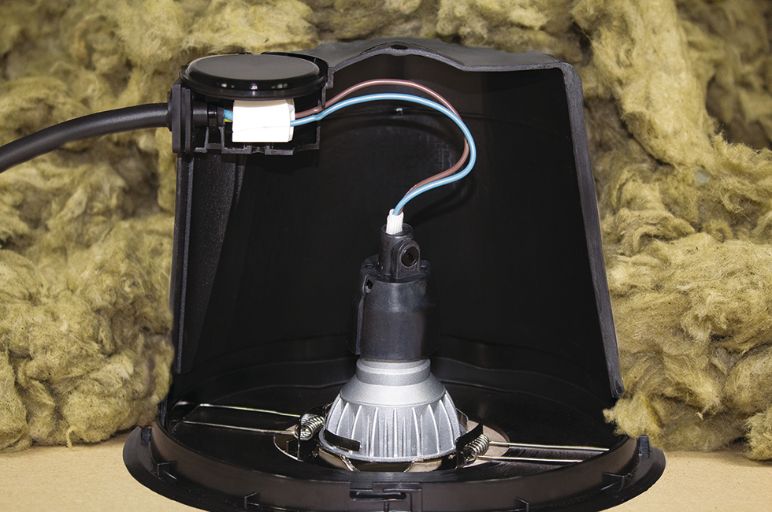

SpotClip-Box

Downlight covers SpotClip-Box

SpotClip-Box ensures safety distance between the downlight, damp-proof foil and insulation material. Designed especially for passive houses.

Suitable for all types of suspended ceilings and a variety of insulation materials.  Quick and easy one-click installation with bayonet mechanism.  Tested according to EN 60598-1, EN 60598-2-2 and NF C 15100

TYPE Colour Pack Cont. Article-No.
SpotClip-Box Black  1 piece 148-00122

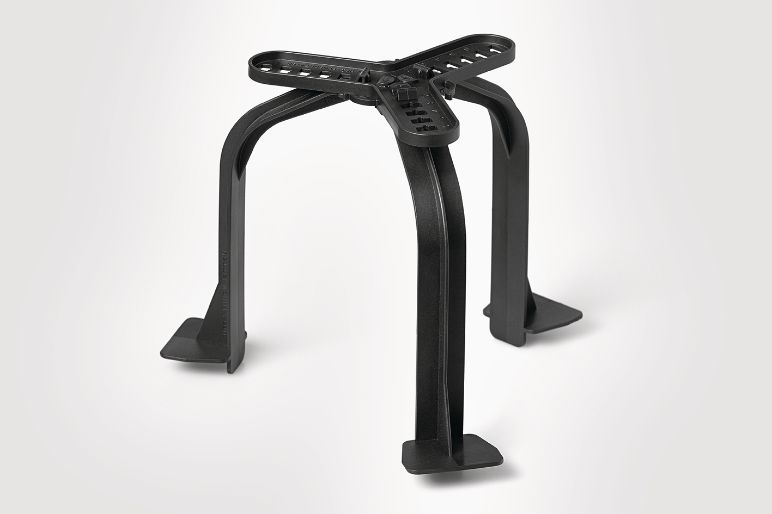

SpotClip-Kit

Downlight covers SpotClip-Kit

SpotClip-Kit has been designed for use primarily in industrial and office buildings for downlights with larger dimensions.  The kit consists of three legs and a mounting plate.  The legs are available in two different lengths (150mm and 240mm).

The SpotClip-Kit has six selectable fixing positions in the mounting plate, making it suitable for downlights of differing dimensions.

TYPE Colour Pack Cont. Article-No.

SpotClip-Kit 150

SpotClip-Kit 240

Black

Black

1 piece

1 piece

148-00119

148-00120

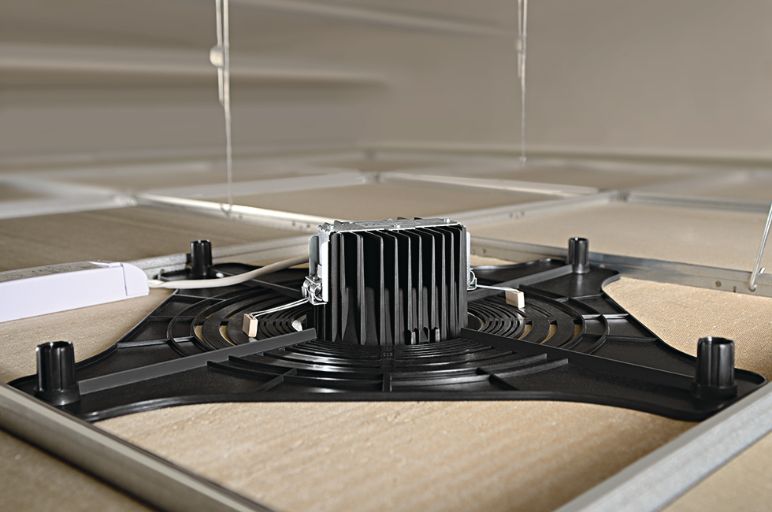

SpotClip-Plate

Downlight covers SpotClip-Plate

SpotClip-Plate can be combined with SpotClip-Kit, SpotClip-Caps or placed on top of each other with standard SpotClip-Tubes to ensure the required distance.  Especially designed for installation in suspended grid ceilings in order to avoid damage and cracks in the ceiling plates caused by the weight of heavy downlights.  This product remains rigid even at higher temperatures.

TYPE Colour Pack Cont. Article-No.
SpotClip-Plate 600 Black 10 pieces 148-00117
