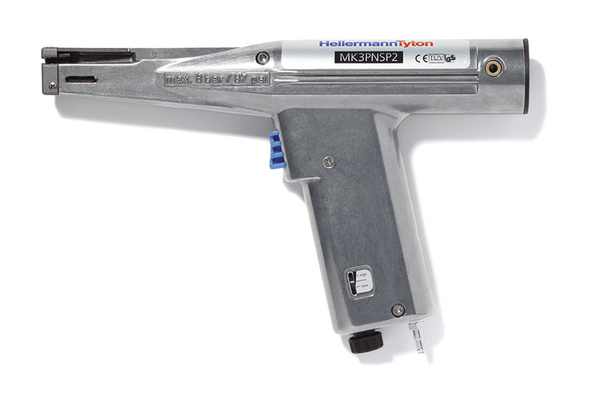

Pneumatic Tensioning Tool with Metal Housing MK3PNSP2

MK3PNSP2 up to 4.8 mm strap width, Article number: 110-03400

Features

  • Unique levels of repeatability and accuracy
  • High application speed and low maintenance
  • Cable ties cut off flush at head to ensure safety in the workplace
  • Suitable for strap width ≤ 4.8mm and strap of 1.5mm (all in T18 to T50 series)
  • Saves application time
  • Particularly suitable for sensitive applications and repetitive work
  • Ergonomically designed cutting process to prevent repetitive strain injury
  • Tensioning force has 125 adjustable settings from 45 to 210N
  • High precision for applications where quality is critical

Certifications & Approvals

Application

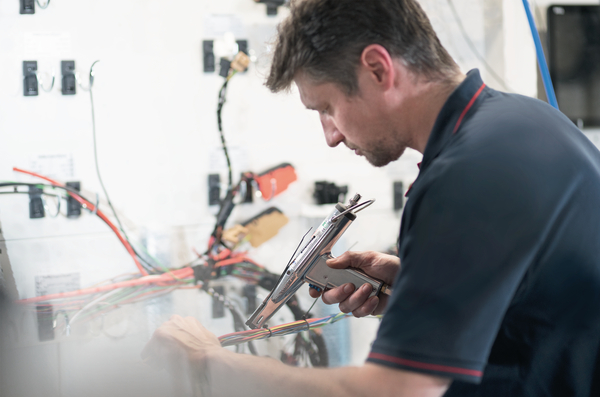

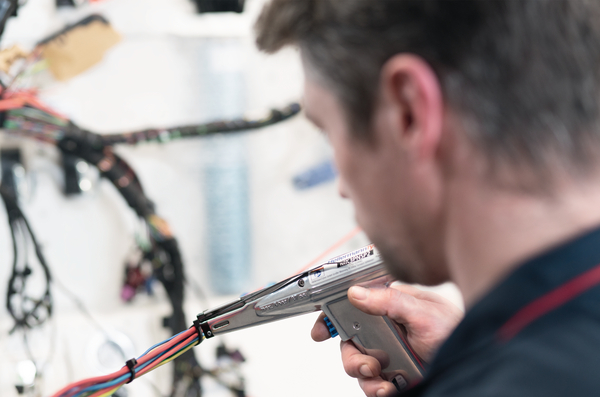

Powered by compressed air at a pressure of up to 6 bars, the MK3PNSP2 is most beneficial in mass production environments, whether on the assembly line or in cable fabrication.

MK3PNSP2 up to 4.8 mm strap width is suitable for following markets and industries

Air att. Position Lower air connection
Air Pressure (min.) 3Bar
Colour Metal (ML)
Description MK3PNSP2
Description Short (BMEcat) (max. 150 characters) Pneumatic Tensioning Tool up to 4.8 mm strap width
for Air Pressure min - max 3 - 6 Bar
GLOBAL PART NAME MK3PNSP2-AL-ML
Operation pneumatic
Pack Cont. 1pc.
Package Quantity per pieces
Product Family MK3PNSP2 up to 4.8 mm strap width
Product Group Pneumatic Tensioning Tool with Metal Housing
Strap Thickness max. 1.5
Tension Setting Tools Adjustable
Tool property Automatic cut off
Tool suitable cable tie material Plastic
Type MK3SPM.9A
Air Pressure (max.) 6Bar
Air Supply Non oiled / oiled
Hose Internal Diameter 4.0mm
L x H x W approx. 225 x 140 x 40mm
Strap Width max. 4.8mm
Tension Force approx. 50 up to 160 N, adjustable
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Aluminium (AL)
Specifications
Specifications 2006/42/EG, GS
EAN / GTIN 4031026102375
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.227m
Packaging 1 - Qty 1
Packaging 1 - Type pieces
Packaging 1 - Volume (m³) 0.00126
Packaging 1 - Weight (kg) 0.551kg
Packaging 1 - Width (m) 0.146m
Packaging 2 - Height (m) 0.053m
Packaging 2 - Length (m) 0.26m
Packaging 2 - Qty 1
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.003
Packaging 2 - Weight (kg) 0.728kg
Packaging 2 - Width (m) 0.215m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 12
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 12.036kg
Packaging 3 - Width (m) 0.4m
Weight 0.551kg
ETIM 5.0 EC000453
ETIM 6.0 EC000453
