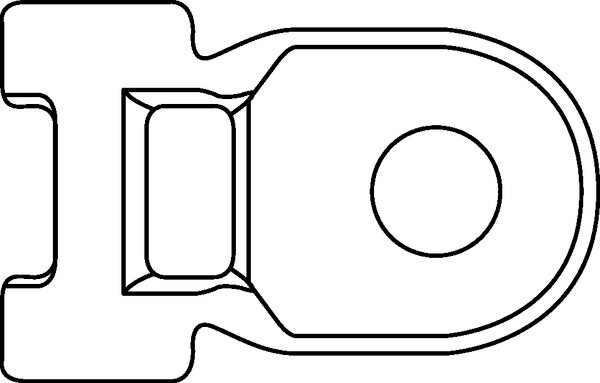

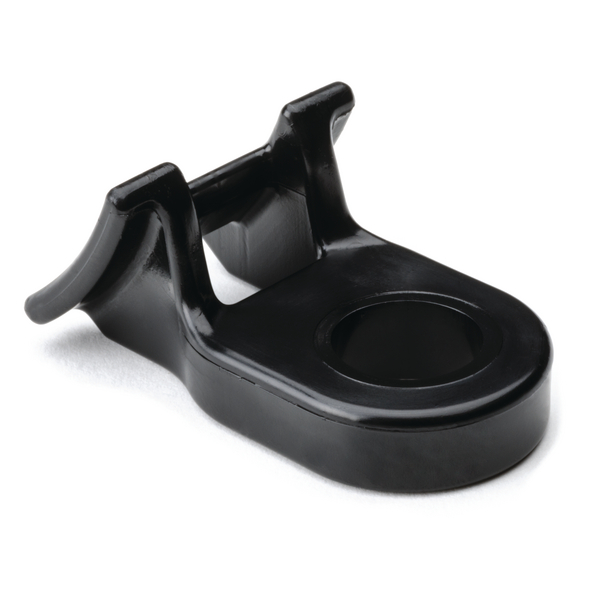

Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts HDM501

Medium Torque Mounts, Article number: 151-07500

Features

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 12.7 mm width
  • High tightening torque through metal bushing
  • Easy maintenance of bundle by simply changing the cable tie

Certifications & Approvals

Application

These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or argriculture industry.

Medium Torque Mounts is suitable for following markets and industries

Colour Black (BK)
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME HDM501-PA66HIRHSUV-BK
Pack Cont. 500
Package Quantity per Bag
Product Family Medium Torque Mounts
Product Group Harness Clip for Heavy Duty Applications, for Screws or threaded Bolts
Type HDM501HIHSUVH4
for Hole ∅ (FH) 12.7 mm
Height (H) 20.7mm
Length (L) 46.0mm
Strap Width max. (G) 12.7mm
Strap Width max. (G) (imperial) 0.50"
Width (W) 24.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Maximum Torque (kgf-cm) 553kgf-cm
Maximum Torque (lbf-In) 40lbf-ft
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026266374
Packaging 1 - Height (m) 0.358m
Packaging 1 - Length (m) 0.592m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04239
Packaging 1 - Weight (kg) 0.5kg
Packaging 1 - Width (m) 0.2m
Packaging Content SKU Unit pieces
Weight 0.01608lbs
Weight 1kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
