Cable Tie Mounts for food industry, detectable MCCTAM1

MCCTAM-Series, for applications where space is limited, Article number: 151-00997

Features

  • Distinctive blue colour for easy visual detection
  • Suitable for applications with minimal space

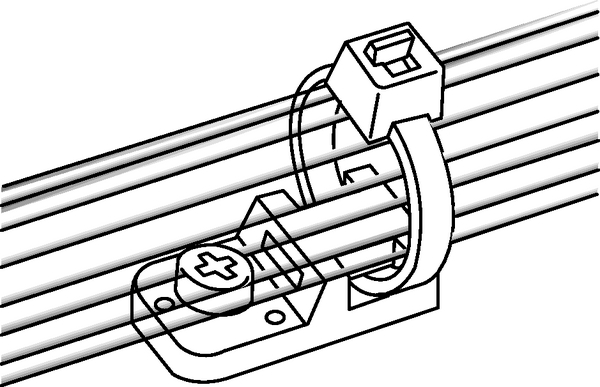

  • Mounted before cable installation and in line with cable
  • CTAM has 4-way entry design for use in line or at 90° angle to cable run
  • Magnetic and X-Ray detectable – perfect for use with food and pharmaceutical grade detection equipment
  • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
  • Greatly reduced risk of contamination within food products
  • Can support quality assurance in the production of food stuffs, for example HACCP

Certifications & Approvals

Application

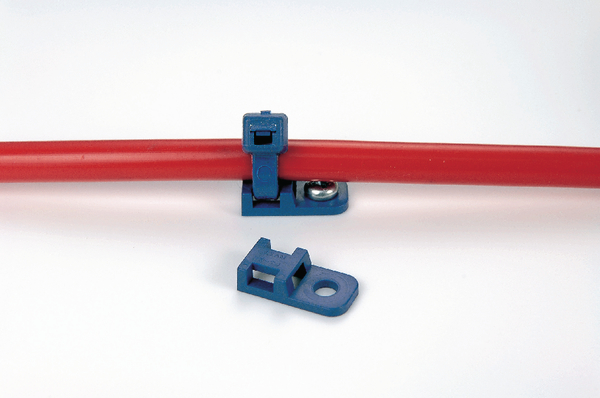

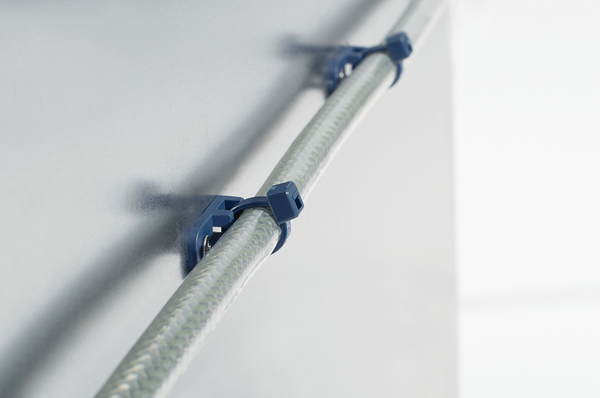

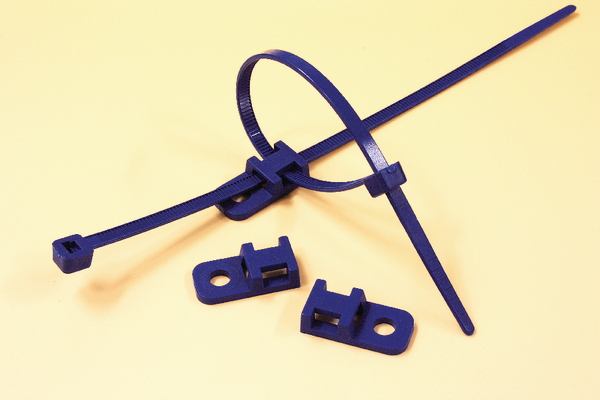

MCCTAM mounts are ideally suited for holding MCT-Series cable ties in position, even in areas of high vibration such as food manufacturing equipment and automated packaging machines.

MCCTAM-Series, for applications where space is limited is suitable for following markets and industries

Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Metal Content Screw Fixing Mount 20.7x10.3 mm PA66MP+ blue
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME MCCTAM1-PA66MP+-BU
Mounting Screw Type M4
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family MCCTAM-Series, for applications where space is limited
Product Group Cable Tie Mounts for food industry, detectable
Type MCCTAM1-BLU

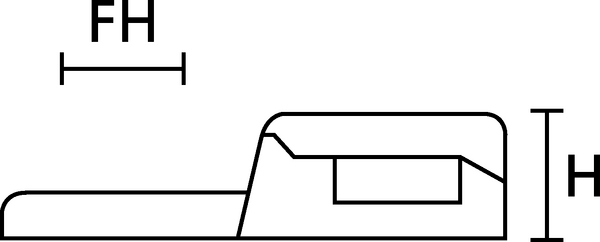

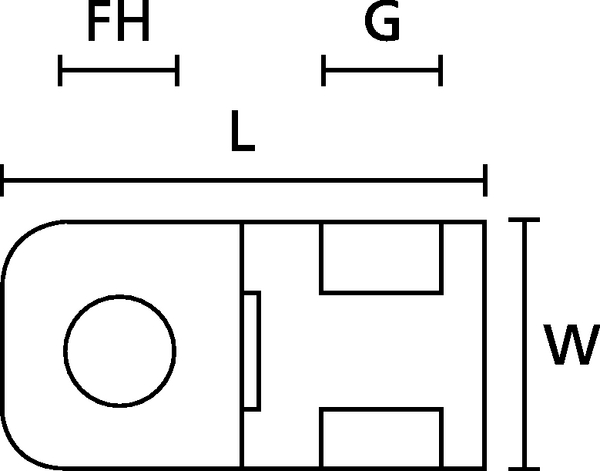

for Hole ∅ (FH) 4.3 mm
Height (H) 5.1mm
Length (L) 20.7mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Width (W) 10.3mm
ELV compliant Dir. Art. 4 (2) YES
Flammability not flame retardant
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, with metal particles (PA66MP+)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4944387104233
Packaging 1 - Height (m) 0.022m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.111kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.45m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0251
Packaging 3 - Weight (kg) 17.26kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 538.8kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
