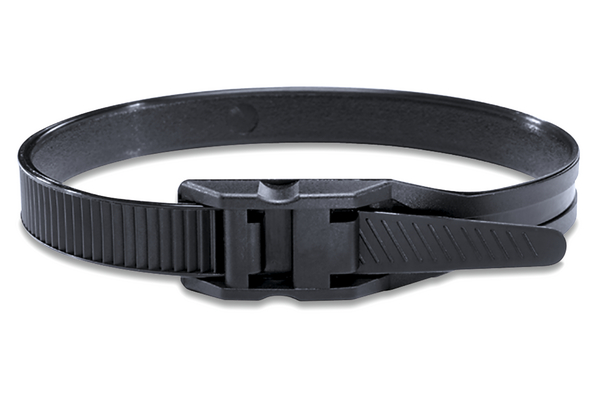

Cable ties with low profile head LPH275

LPH-Series, Article number: 112-00303

Features

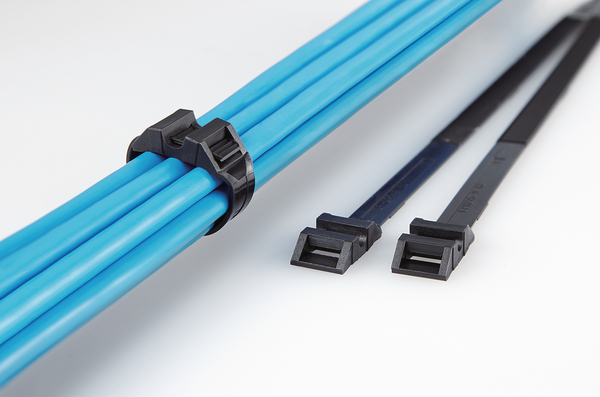

  • Outside serrated cable tie with a smooth surface to the bundle
  • Protects against damage to insulation
  • Broad contact area with cable, minimising risk of damage
  • Low profile head for use in restricted areas

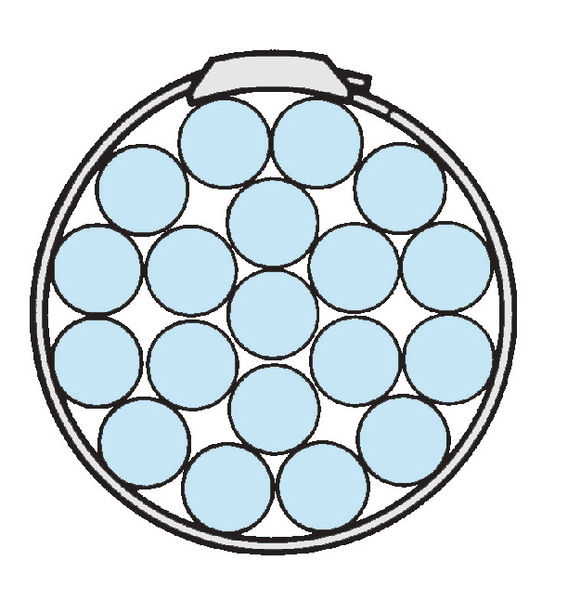

  • Parallel bundling for secure applications

Certifications & Approvals

Application

Designed primarily for use within the electrical supply industry, these ties are particularly useful in areas with limited space due to their low profile head.

LPH-Series is suitable for following markets and industries

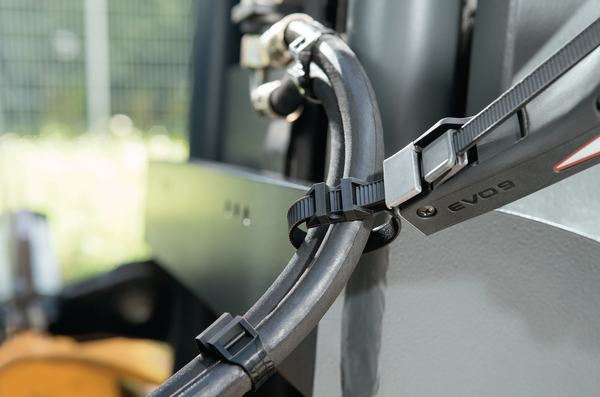

Application Tool MK6, MK9P, MK10-SB, MK21, EVO9, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie 265x9 mm, outside serrated, high impact modified, scan black
Fixation Method Others
GLOBAL PART NAME LPH275-PA66HIR(S)-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family LPH-Series
Product Group Cable ties with low profile head
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type LPH275.NB900
Variant Outside Serrated
Bundle ∅ max. 62.0mm
Bundle ∅ min. 25.0mm
Length (L) 265mm
Min.Tensile Strength 480N
Width (W) 9mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications IEC 60092 series
EAN / GTIN 5022660311406
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.345kg
Packaging 1 - Width (m) 0.085m
Packaging 3 - Height (m) 0.371m
Packaging 3 - Length (m) 0.414m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0488
Packaging 3 - Weight (kg) 10.97kg
Packaging 3 - Width (m) 0.318m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
