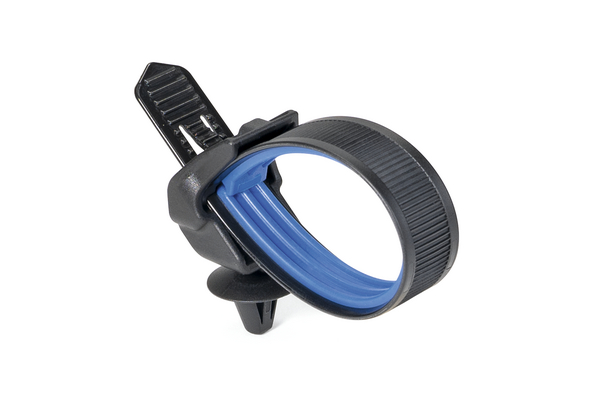

Fixing tie for hole (round), outside serrated, ∅5.0-25.4mm, black/blue, 250
Art.-No. 156-04097
| SGT100SAHD6.5S2.0-PA66HS/TPE-BK/BU
|
Details
- Suitable for a variety of fastening requirements thanks to different foot parts (for holes, for studs, for screw fixings)
- Soft Grip cable ties assure high protection of sensitive harnesses and fluid system tubes

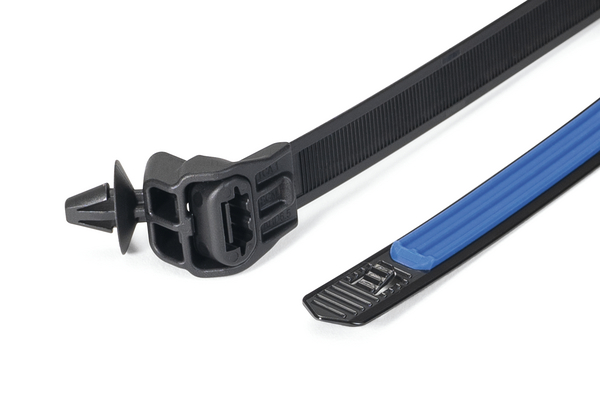

- Soft TPE inner layer inhibits lateral movements of the bundle, especially on smooth tubing
- Pre-locking feature holds the cable tie in place before it is tensioned
- Soft Grip cable ties can be removed with a screwdriver for maintenance

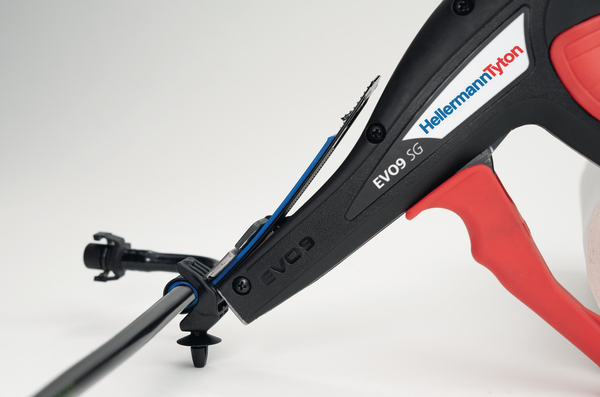

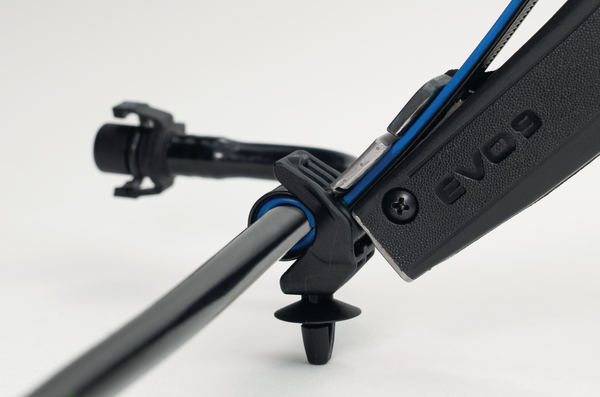

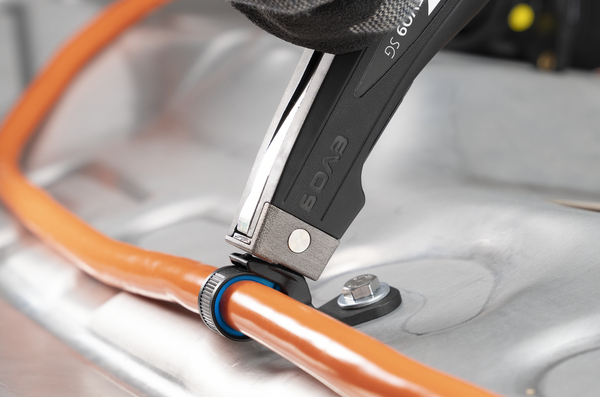

- EVO9SG application tool with adjusted nose piece available
Request your individual offer now
Request quote
More products in this product group:
This product is part of:
Sample_Pack_Wire_Harness
SamplePack_Fluid_Routing_Management
SamplePackSOFTGRIP

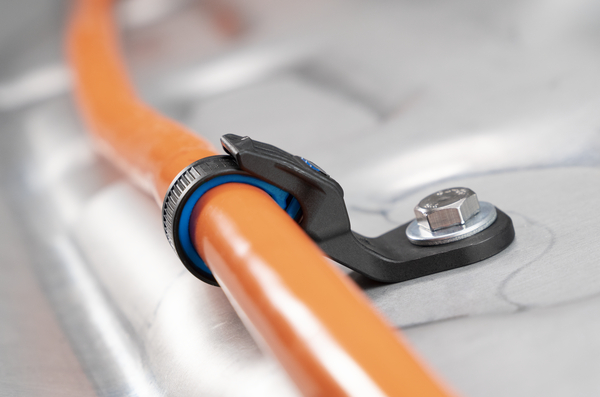

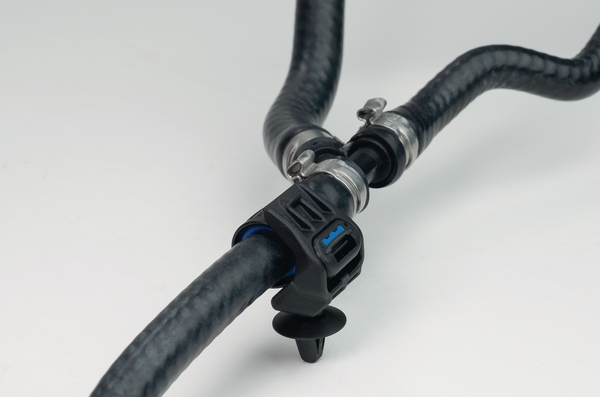

Application | Soft Grip mounts are especially designed for use with Soft Grip ties. The versatile combinations provide a variety of flexible fastening options for fluid management / cooling systems in vehicles. The Soft Grip Series is a unique semi-customised part solution and designed to save time, money and development effort. The foot parts of the mounts can be adjusted to individual customer requirements. In the event of maintenance, the cable tie can be easily removed using a screwdriver. Only the cable tie then needs to be replaced, not the whole fixing element. |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK), Blue (BU) |
Fixation Method | arrowhead |
Identification Plate Position | none |
Key product features | softgrip |
Local order number | SGT100SAHD6.5S2.0_PA66HS/TPE/PA66HS_BK/BU/BK |
Material | Polyamide 6.6, heat stabilised (PA66HS), Thermoplastic Elastomer (TPE) |
PART DESCRIPTION | SGT100SAHD6.5S2.0-PA66HS/TPE-BK/BU |
Pack Cont. | 250 |
Package Content packed in | pcs. |
Product Family | with arrowhead, with disc, for round holes |
Product Group | 2-piece fixing ties for strong hold on smooth bundles |
Short Description | 2-piece Soft Grip fixing tie with arrow head for round holes 6.5 mm, black / blue |
Strap Thickness max. | 2.85mm |
Tie Closure | plastic pawl |
Type | SGT100SAHD6.5S2.0 |
Variant | Outside Serrated |
Bundle Diameter max (metric) | 25.4mm |
Bundle ∅ | 5.0-25.4mm |
Bundle ∅ min. | 5.0mm |
Cable Tie Head Height (metric) | 7.5mm |
Cable Tie Head Width (metric) | 16.0mm |
Disc ∅ | 16.0mm |

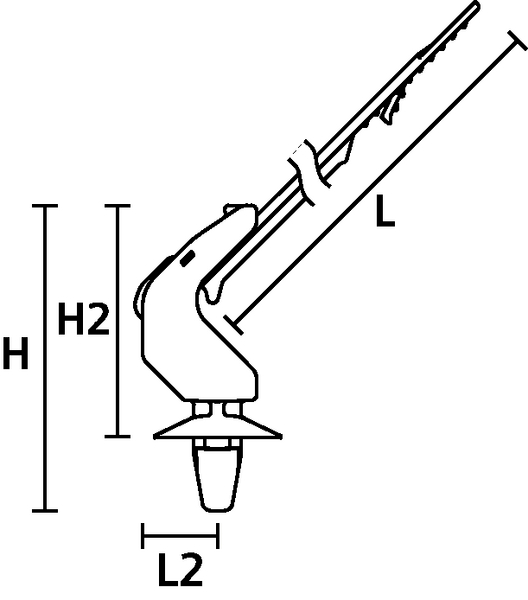

Height (H) | 38.7mm |
Height (H2) | 29.5mm |
Length (L) | 140.0mm |
Length (L2) | 9.5mm |
Min.Tensile Strength | 445N |
Panel Thickness max. | 1.7 - 2.3mm |
Strap Width max. (G) | 12.7mm |
Thickness (T) | 2.85mm |
Weight/Unit | 0.005993kg |
Width (W) | 12.7mm |
Width (W2) | 19.8mm |
for Hole ∅ (FH) | 6.3 - 6.7 mm |
for Panel Thickness min - max | 0.1 - 0.1 " |
for Panel Thickness min - max | 1.7 - 2.3 mm |
CAS Number | 3896-11-5 |
CE Certification | No |
CSA Certified | No |
Critical Substance |
Bumetrizole (UV-326) |
EC Number | 223-445-4 |
ELV compliant Dir. Art. 4 (2) | YES |
Flammability | UL 94 HB |
Halogen-free | No |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
ROHS compliant | Yes |
Reusable (Yes/No) | No |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | No |
|
|
Country of Origin | PL |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026713182 |
Packaging 1 - Height (m) | 0.08m |
Packaging 1 - Length (m) | 0.45m |
Packaging 1 - Qty | 250 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.0144m³ |
Packaging 1 - Weight (kg) | 1.527385kg |
Packaging 1 - Width (m) | 0.4m |
Packaging 3 - Height (m) | 0.368m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 1500 |
Packaging 3 - Type | Box |
Packaging 3 - Volume (m³) | 0.083m³ |
Packaging 3 - Weight (kg) | 9.98431kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.248m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 18000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.198m³ |
Packaging 4 - Weight (kg) | 140.802kg |
Packaging 4 - Width (m) | 0.8m |
