Fixing tie with pipe/tube holder, outside serrated, Ø2-35mm, black, 500pcs.
Art.-No. 156-03032 | T50SOSASVC4S-PA66HIRHS/PP-BK |  Details

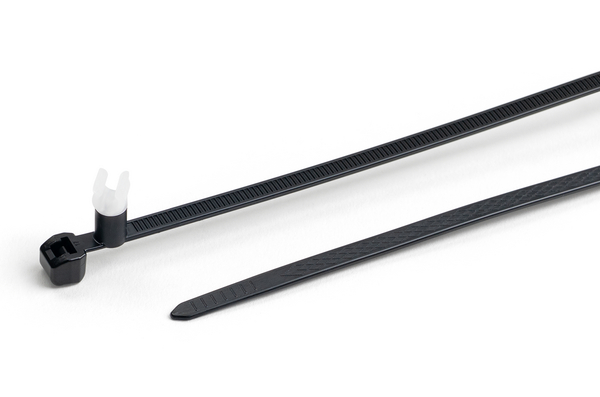

T50SOS-AS cable tie, with pipe clip, rotatable.

    • Simply clip on a wire or hose
    • Fixing clip offers full 360° rotation
    • Routed cable can move in any direction in relation to the fixing point
    • Ideally used in the Automotive Industry
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polypropylene (PP)
    Pack Cont. 500pcs.
    Package Content packed in Bag
    PART DESCRIPTION T50SOSASVC4S-PA66HIRHS/PP-BK
    Product Family for multiple routing
    Product Group 2-piece fixing ties with pipe clip, twistable 360°
    Variant Outside Serrated with AntiSlip Engraving
    Attach to Ø 3.8-4.2mm
    Bundle Diameter max (metric) 35mm
    Bundle ∅ 2-35mm
    Bundle ∅ min. 2mm
    Length (L) 155mm
    Min.Tensile Strength 200N
    Weight/Unit 0.001394kg
    Width (W) 4.6mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026645773
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.016m³
    Packaging 1 - Weight (kg) 0.726135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 7000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.98589kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 84000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 152.808kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
