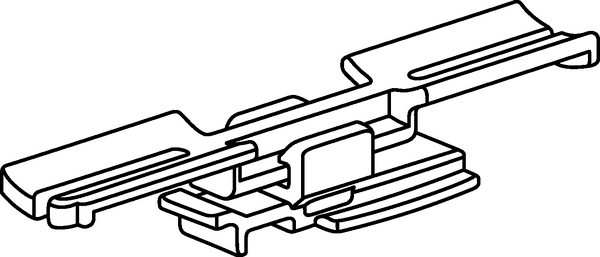

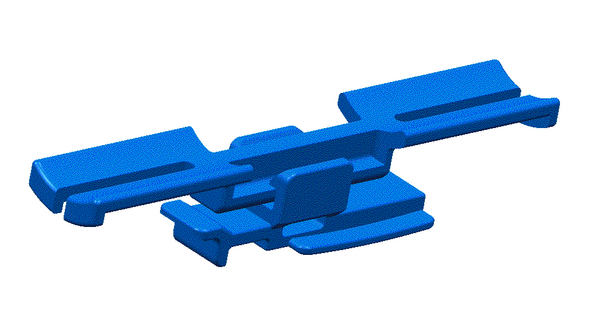

Connector clip, black, 500pcs.
Art.-No. 150-41397 | CONNECTOR CLIP-PA66HIRHS-BK |  Details

ConnectorClips designed for cables and cable sets used in the automotive industry.

    This product is not available anymore.

    Alternative product available

    • Bundles are guided above connector plug
    • Secure fixing of connector
    • For horizontal length tolerance compensation up to 5 mm: CONNECTOR CLIP
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application The ConnectorClips used here have been designed for cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Bundling Clip
    Local order number YCCT.HB6P
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CONNECTOR CLIP-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family Bundling Clips for Connectors, moveable
    Product Group Bundling Clips for Connectors
    Type CONNECTOR CLIP
    Wings on clip base (Yes / No) YES
    Bundling Bar Length 55.0mm
    Height (H) 8.8mm
    Length (L) 55.0mm
    Weight/Unit 0.00146kg
    Width (W) 9.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026120799
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Weight (kg) 0.743862kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Qty 10000
    Packaging 3 - Weight (kg) 15.69724kg
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Qty 120000
    Packaging 4 - Weight (kg) 209.4kg
    UNSPSC Key 39121702
