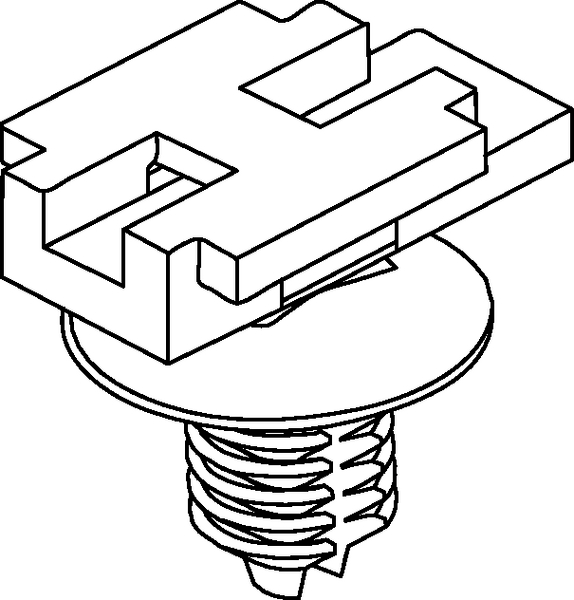

Cable clip, ∅6.5 - 7.0 mm
Art.-No. 151-01127 | FT6LG2CT2-MOD-PA66HIRHS-BK Details

Request your individual offer now

Colour Black (BK)
Local order number FT6LG2CT2-MOD-HIRHS-BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION FT6LG2CT2-MOD-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Family With Fir Tree
Product Group Connector Clips for round holes
Type FT6LG2CT2-MOD
Height (H) 17.9mm
Length (L) 16.5mm
Weight/Unit 0.0008kg
Width (W) 16.5mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 5.1 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026459165
Packaging 1 - Qty 1000
Packaging 1 - Type Carton
Packaging 1 - Weight (kg) 0.8kg
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 14000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.046
Packaging 3 - Weight (kg) 12.02kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 280000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 261.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
