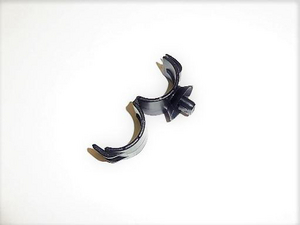

Corrugated tube clip for hole (oval), Ø24.0mm, black, 100pcs.
Art.-No. 155-04000 | RCC D24-PA66HIRHS-BK |  Details

Simple and secure installation of pipes or hoses to panels.

    This product is not available anymore.

    Alternative product available

    • Clamps for corrugated tubing for a variety of nominal diameters
    • Arrowhead simply locks into place
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    • Type RCCD for oval holes 6.2 x 12.2 mm
    • OCTCSFT6,5 clamp for corrugated tubes for nom. diamter of 55-80 mm.
    • CTC-L profile clamp can also fastened to a metal edge
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

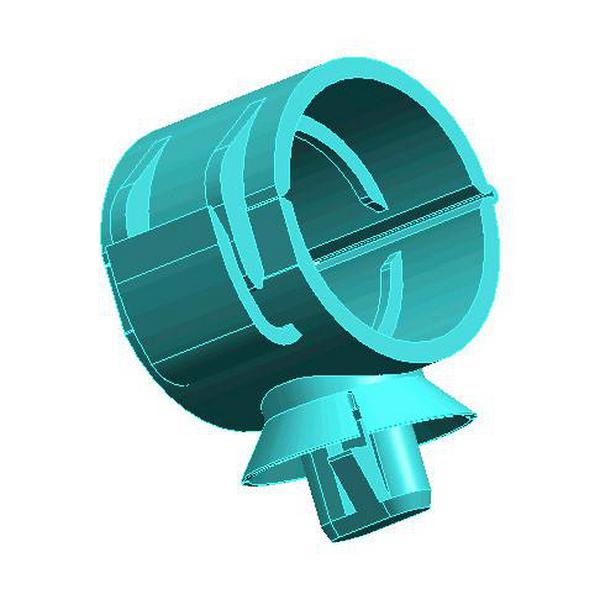

    Downloads CAD-Download
    Application These clamps are used for example in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
    Colour Black (BK)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION RCC D24-PA66HIRHS-BK
    Pack Cont. 100pcs.

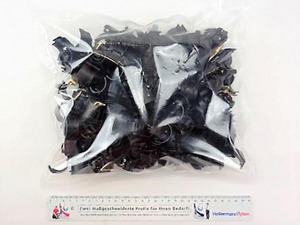

    Package Content packed in Bag
    Product Group Fixing Elements for Corrugated Tubing, with Arrowhead
    Short Description Fixing element for corrugated tubing 33x22 mm, with arrowhead, high impact modified, heat stabilised, black
    Type RCC D24
    Attach to Ø 24.0
    Disc ∅ 22mm
    Height (H) 33.0mm
    Length (L) 33.0mm
    Nominal ∅ 24.0mm
    Panel Thickness max. 0.7 - 2.5mm
    Weight/Unit 0.0052kg
    Width (W) 22.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026214603
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 100
    Packaging 1 - Weight (kg) 0.587538kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Qty 2000
    Packaging 3 - Weight (kg) 12.57076kg
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Qty 24000
    Packaging 4 - Weight (kg) 171.96kg
    UNSPSC Key 39121702
