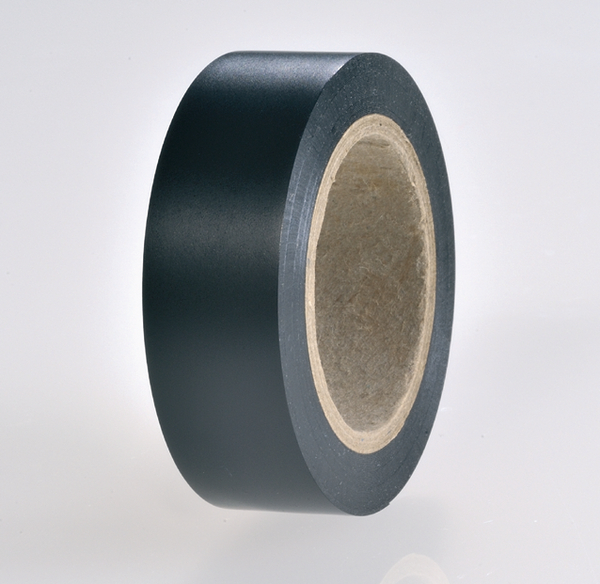

PVC Electrical Insulation Tape 0.21mm thick / 19mm x 20m black
Art.-No. 710-00701 | HTAPE-FLEX2000+19x20-PVC-BK | Details

This product is not available anymore.

All-weather, highly flexible, professional grade, self-adhesive vinyl electrical tape with higher thickness for more mechanical and electrical protection
Excellent performance and durability over wide temperature range from -18 °C to +105 °C according to CSA C22.2
Pressure sensitive and aggressive high quality rubber based adhesive
Performs continuously at low temperature environment
Flame retardant according to UL 510 Standard
Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
Primary electrical insulation for all wire and cable splices up to 1 kV

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, high, and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications.
Colour	Black (BK)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	HTAPE-FLEX2000+19x20-PVC-BK
Pack Cont.	1Reel
Package Content packed in	Reel
Product Family	HelaTape Flex 2000+
Product Group	Vinyl Electrical Tapes – Premium Heavy Duty Vinyl Electrical Tape
Short Description	PVC Electrical Insulation Tape 0.21mm thick / 19mm x 20m black
Type	HTAPE-FLEX2000+19x20

Adhesion to Backing	2.4N/10 mm
Adhesion to Steel	3.0N/10 mm
Breaking Strength	40N/10 mm
Dielectric Strength	40kV/mm
ELV compliant Dir. Art. 4 (2)	YES
Elongation at break	300 %
Hazardous Goods	No
Insulating (Yes/No)	Yes
Operating Temperature	-18 °C to +105 °C
ROHS compliant	Yes
Self extinguishing	Yes
Shelf Life	5 years
Suitable for high voltage (Yes/No)	No
Tensile Strength	45.5N/mm²
UV-Stabilised	Yes
