Egde protection grommets OP1503

Edge protection grommets, Article number: 633-55039

Features

  • Protects cables from sharp edges
  • Provides additional strain relief
  • Flexible and easy to apply
  • High resistance to chemicals and environmental influences

Certifications & Approvals

Application

Edge protection grommets are used wherever cable and wires are routed through outlets and apertures. HellermannTyton grommets offer excellent mechanical protection.

Edge protection grommets is suitable for following markets and industries

Cable ∅ max 6.4mm
Cable ∅ min 5.4mm
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Edge protection grommets natural
GLOBAL PART NAME OP1503-PE-NA
Pack Cont. 2000pcs.
Package Quantity per pcs.
Product Family Edge protection grommets
Product Group Egde protection grommets
Variant Open

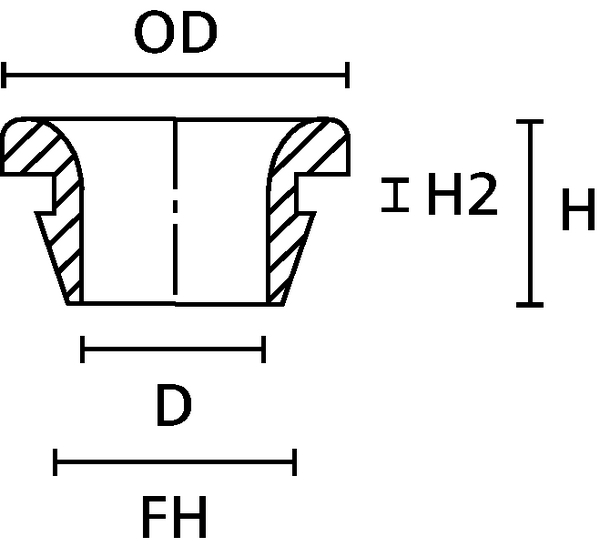

Bundle ∅ max. 9.6mm
Diameter (D) 5.4mm
for Hole ∅ (FH) 6.7 mm
Height (H) 5.0mm
Height (H2) 1.0mm
Outside Ø (OD) 9.6mm
Shore Hardness A Nom. 45
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyethylene (PE)
Operating Temperature - °C -10 °C to +70 °C
Specifications
Waterproof No
EAN / GTIN 4031026186634
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.35m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0049
Packaging 1 - Weight (kg) 0.24kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 60000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 10.5kg
Packaging 3 - Width (m) 0.4m
Weight 0.24kg
ETIM 5.0 EC000879
ETIM 6.0 EC000879
