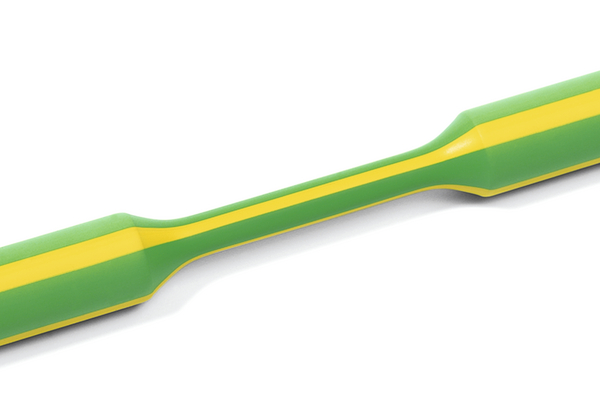

Heat Shrinkable Tubing 2:1 VG-Norm 4.8/2.4 green/yellow
Art.-No. 305-04845
| HFT-A-4.8/2.4-PO-X-GNYE
|
Details
- Flexible heat shrink tubing
- Fast shrinking, easy handling, good mechanical strength
- Wide range of colours
- Internal diameters up to 102 mm (4 inches)
- UL-224 ,CSA listed and VG approved
Request your individual offer now
Request quote
More products in this product group:
Application | This high performance thin wall tubing is used extensively for electrical and mechanical protection. It is also well proven for sleeve marking to identify wiring circuits. |
Behaviour At Low Temperature | not cracking |
Behaviour at low Temperature test method | IEC 60684-2 |
Colour | Green-Yellow (GNYE) |
Heat Shock Elongation | 390% |
Heat Shock Tensile Strength | 13MPa |
Heat Shock Test | 4h/200°C |
Heat shock test test method | IEC 60684-2 |
Material | Polyolefin, cross-linked (PO-X) |
PART DESCRIPTION | HFT-A-4.8/2.4-PO-X-GNYE |
Pack Cont. | 75m |
Package Content packed in | metre |
Printable | No |
Product Family | HFT-A - self extinguishing |
Product Group | Heat Shrinkable Tubing 2:1 flexible and coloured |
Short Description | Heat Shrinkable Tubing 2:1 VG-Norm 4.8/2.4 green/yellow |
Shrink Ratio | 2:1 |
Size (imperial) | 3/16" |
Type | HFT-A-4.8/2.4 |
Variant | Thin-Wall |
With inner glue (Yes/No) | No |
CSA Certified | Yes |
Designation as per VG-Norm | VG 95343 T05 A 005 N |
Dielectric Strength | 21kV/mm |
Dielectric Strength test method | IEC 60684-2 |
ELV compliant Dir. Art. 4 (2) | YES |
Elongation at break | 400% |
Elongation at break test method | IEC 60684-2 |
Flammability | UL 224 VW-1 |
Halogen-free | No |
Hazardous Goods | No |
Insulation Class | B (VDE 0530) |
Minimum Shrink Temperature | +135 °C |
Nato number | 5970-12-316-7281 |
Operating Temperature | -55 °C to +135 °C |
ROHS compliant | Yes |
Self extinguishing | Yes |
Specifications | CLASS 903201, UL 224, VG 95343-5:2016-10 |
Specifications | |
Tensile Strength | 14MPa |
Test Method Tensile Strength | IEC 60684-2 |
UL OCD link | Link |
UL Recognized (US and Canada) | Yes |
UL-File Number | E143529 |
Volume Resistance | 10¹⁴ Ω cm |
Volume Resistance test method | IEC 60684-2 |
|
|
Country of Origin | NL |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026140490 |
Packaging 1 - Height (m) | 0.395m |
Packaging 1 - Length (m) | 0.39m |
Packaging 1 - Qty | 75 |
Packaging 1 - Type | Reel |
Packaging 1 - Volume (m³) | 0.0077m³ |
Packaging 1 - Weight (kg) | 0.542kg |
Packaging 1 - Width (m) | 0.05m |
Packaging 3 - Height (m) | 0.055m |
Packaging 3 - Length (m) | 0.395m |
Packaging 3 - Qty | 75 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.0087m³ |
Packaging 3 - Weight (kg) | 1.042kg |
Packaging 3 - Width (m) | 0.4m |
Packaging 4 - Height (m) | 1.245m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 9000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.195m³ |
Packaging 4 - Weight (kg) | 145.98kg |
Packaging 4 - Width (m) | 0.8m |
Reel Length | 75.0m |
