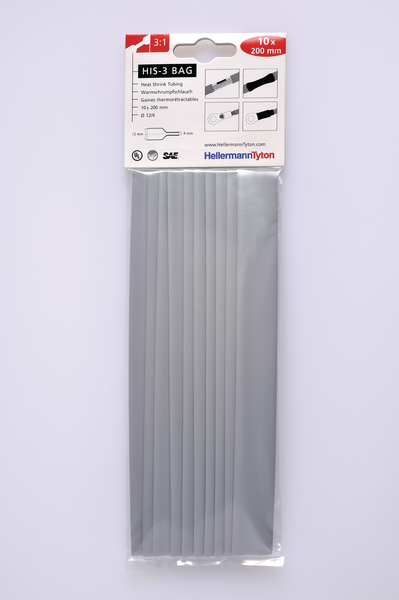

Heat Shrinkable Tubing 3:1 grey in blister bags 12/4
Art.-No. 308-31213
| HIS-3-BAG-12/4-PO-X-GY
|
Details
- Thin wall and flexible tubing made of cross-linked Polyolefin
- High shrink ratio 3:1
- Handy, small packaging with 10 pre-cut pieces of 200 mm
- Fits highly variable cable diameters
Request your individual offer now
Request quote
More products in this product group:
| Application | HIS-3 BAG tubings are useable for insulation and protection of cables and harnesses. |
| Behaviour At Low Temperature | not cracking |
| Behaviour at Heat Shock | not fluid, not dripping, not cracking |
| Behaviour at low Temperature test method | UL 224 |
| Colour | Grey (GY) |
| Elongation At Heat Aging | 400% |
| Heat Aging Test | 168h/175°C |
| Heat Aging test method | UL 224 |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| Minimum Tensile Strength At Heat Aging | 13MPa |
| PART DESCRIPTION | HIS-3-BAG-12/4-PO-X-GY |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Printable | No |
| Product Family | HIS-3 BAG |
| Product Group | Heat Shrinkable Tubing 3:1 in blister bags |
| Short Description | Heat Shrinkable Tubing 3:1 grey in blister bags 12/4 |
| Shrink Ratio | 3:1 |
| Type | HIS-3-BAG-12/4 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Download
| Dielectric Strength | 32kV/mm |
| Dielectric Strength test method | IEC 60243 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 800 |
| Elongation at break test method | ASTM D2671 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | B (VDE 0530) |
| Minimum Shrink Temperature | +100 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications | ANSI/UL 224 |
| Specifications |
|
| Tensile Strength | 14MPa |
| Test Method Tensile Strength | ASTM D2671 |
| UL Listed (US and Canada) | No |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E143529 |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | UL 224 |
| Water Absorption | 0.15% |
