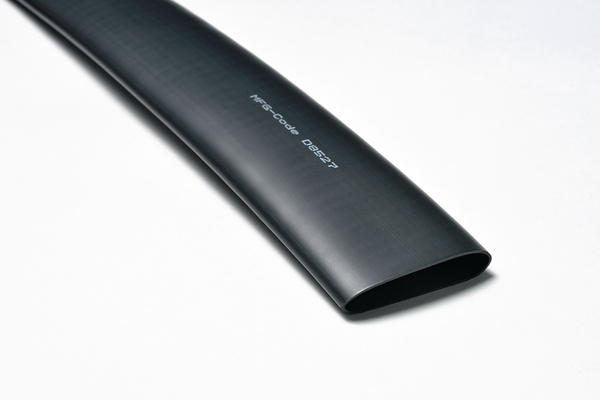

Heat Shrinkable Tubing 2:1 VG-Norm 76,0/38,0
Art.-No. 342-20090 | SE28 76.0/38.0-POA-BK Details

  • Flexible, high performance elastomeric heat shrink tubing
  • Used in aerospace, defence, railway and automotive applications
  • Resistant to diesel fuel, aviation and hydraulic fluids
  • Provides a reliable protection against abrasion and mechanical damage
  • Very suitable for protecting cables and wire harnesses
  • For high temperature applications up to 150 °C
Show more

Request your individual offer now

Application SE28 is used for long-term protection of cables and wire harnesses in military equipment, motor sports, and aviation.
Behaviour At Low Temperature not cracking
Behaviour at Heat Shock not cracking, not dripping, not fluid
Behaviour at low Temperature test method VG 95343-5
Colour Black (BK)
Elongation At Heat Aging 290%
Heat Aging Test 168h/160°C
Heat Aging test method VG 95343-5
Heat Shock Tensile Strength 10MPa
Heat Shock Test 4h/215°C
Heat shock test test method VG 95343-5
Material Elastomer, cross-linked (POA)
Minimum Tensile Strength At Heat Aging 11MPa
PART DESCRIPTION SE28 76.0/38.0-POA-BK
Pack Cont. 15m
Package Content packed in Reel
Printable No
Product Family SE28
Product Group Heat Shrinkable Tubing 2:1 - Elastomer
Short Description Heat Shrinkable Tubing 2:1 VG-Norm 76,0/38,0
Shrink Ratio 2:1
Type SE28 76.0/38.0
Variant Standard-Wall
With inner glue (Yes/No) No
Longitudinal Change After Shrinkage -10% max.
Recov. ∅ d 38.0mm
Recov. ∅ d max. (imperial) 1.5"
Supplied ∅ D 76.0mm
Supplied ∅ D min. (imperial) 2.99"
Wall (WT) 3.2mm
Wall (WT) (imperial) .13"
Weight/Unit 0.4773kg
Designation as per VG-Norm VG 95343 T05 D 010 A
Dielectric Strength 20kV/mm
Dielectric Strength test method VG 95343-5
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 450%
Elongation at break test method VG 95343-5
Flammability VG 95343-5
Halogen-free No
Hazardous Goods No
Minimum Shrink Temperature +170 °C
Nato number 5970-12-193-2354
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Self extinguishing Yes
Specifications VG 95343-5:2016-10
Specifications
Tensile Strength 19MPa
Test Method Tensile Strength VG 95343-5
Volume Resistance 10¹¹ Ω cm
Water Absorption 1.30%
Country of Origin JP
Customs Number 39173200
GTIN-13 / EAN 4031026432663
Packaging 1 - Height (m) 0.4m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 15
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0416
Packaging 1 - Weight (kg) 7.16kg
Packaging 1 - Width (m) 0.26m
Reel Length 15m
Reel Length (imperial) 49.21ft
ETIM 7.0 Key EC000217
ETIM 8.0 Key EC000217
ETIM 9.0 Key EC000217
UNSPSC Key 39121723
