Heat Shrinkable Tubing 3:1 with adhesive liner Kit black and transparent
Art.-No. 380-03003
| ShrinKit 321-A-PO-X-BK/CL
|
Details
- Adhesive lined heat shrink tubing in black and transparent

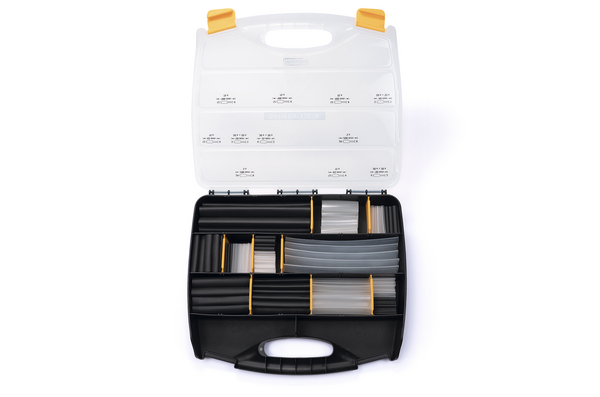

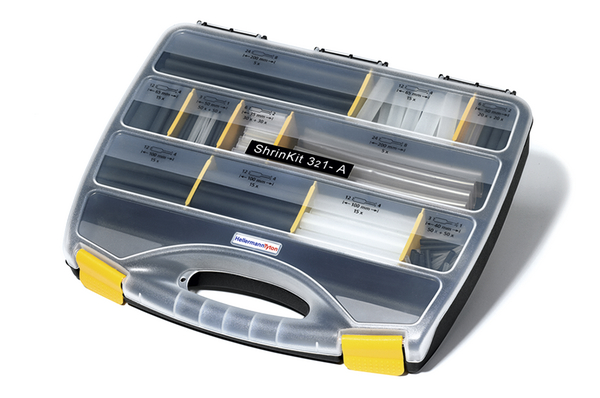

- Attractive and reusable kit ideal for assembling and identification
- Inner wall melts when heated and is forced into gaps
- Adhesive forms seal against moisture as tubing cools
- Black tubing mainly for the protection of connectors and splices

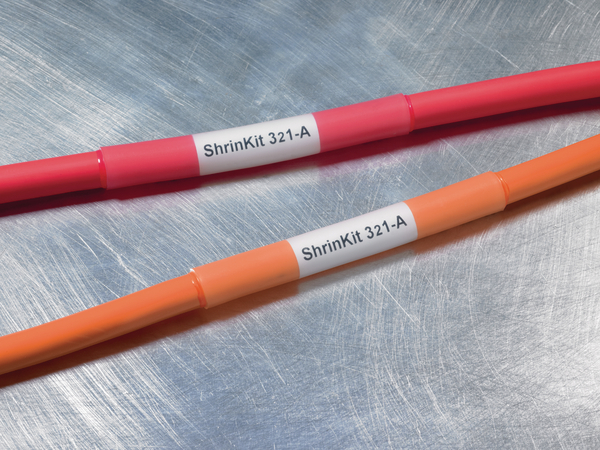

- Transparent tubing ideal for protection of printed label markers

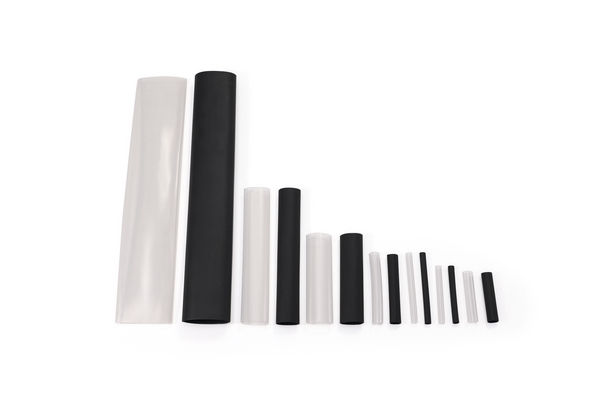

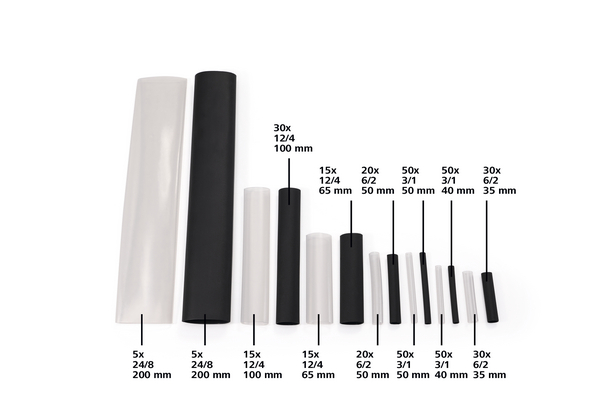

- 385 precut pieces in four tubing sizes
- Case can be re-used for storing nails, screws, nuts, fish hooks, etc.
- Compartment size changeable by simply moving yellow space dividers
Request your individual offer now
Request quote
More products in this product group:
Application | The black tubing is mainly used for environmental sealing of splices and connectors. The transparent tubing is typically used for protection of cable markers. |
Application Method | Use hot air tool |
Colour | Black (BK), Transparent (CL) |
Content | This kit contains a range of general purpose tubing lengths clearly sorted. Four different sizes are included in black and clear. |
Material | Polyolefin, cross-linked (PO-X) |
PART DESCRIPTION | ShrinKit 321-A-PO-X-BK/CL |
Pack Cont. | 1Set |
Package Content packed in | kit |
Printable | No |
Product Family | ShrinKit 321-A - with adhesive liner - 385pcs - BK/CL |
Product Group | Heat shrinkable tubing 3:1 in a kit |
Short Description | Heat Shrinkable Tubing 3:1 with adhesive liner Kit black and transparent |
Shrink Ratio | 3:1 |
Type | ShrinKit 321-A |
Variant | Thin-Wall |
With inner glue (Yes/No) | Yes |
Adhesive | Hot melt adhesive |
Dielectric Strength | 15kV/mm |
Dielectric Strength test method | IEC 684 P2 |
ELV compliant Dir. Art. 4 (2) | YES |
Hazardous Goods | No |
Insulation Class | A (VDE 0530) |
Minimum Shrink Temperature | +110 °C |
Operating Temperature | -55 °C to +110 °C |
ROHS compliant | Yes |
Self extinguishing | No |
Softening Point Adhesive | +120 °C |
Specifications | |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
|
|
Country of Origin | PL |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026270715 |
Packaging 1 - Height (m) | 0.063m |
Packaging 1 - Length (m) | 0.38m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | Pack |
Packaging 1 - Volume (m³) | 0.00742m³ |
Packaging 1 - Weight (kg) | 1.1kg |
Packaging 1 - Width (m) | 0.31m |
Packaging 3 - Height (m) | 0.32m |
Packaging 3 - Length (m) | 0.405m |
Packaging 3 - Qty | 6 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.0525m³ |
Packaging 3 - Weight (kg) | 7.1kg |
Packaging 3 - Width (m) | 0.405m |
Packaging 4 - Height (m) | 1.104m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 108 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.06m³ |
Packaging 4 - Weight (kg) | 148.8kg |
Packaging 4 - Width (m) | 0.8m |
