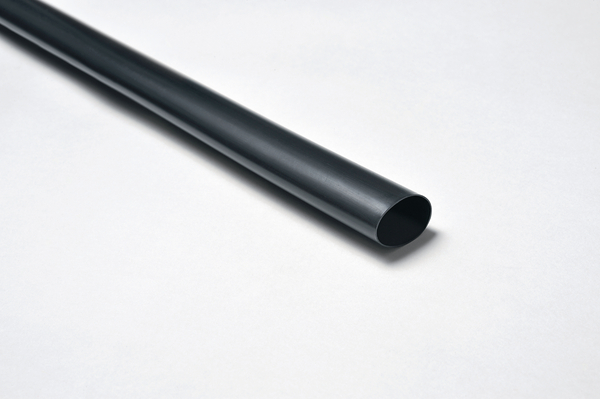

Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 24/8 black
Art.-No. 315-13006
| TA37 24-8-PO-X-BK
|
Details
- Thin wall adhesive lined heat shrink tubing
- Halogen free
- Flame retardant
- Combination of these three (halogen free, adhesive lined and flame retardant) product properties is unique
- Low smoke generation
- Low generation of toxic gases and corrosive acid
Request your individual offer now
Request quote
More products in this product group:
Application | TA37 shrink tubing has a low smoke index and excellent flame retardant properties to meet strict fire security standards in electrical insulation. |
Behaviour At Low Temperature | not cracking |
Behaviour at Heat Shock | not fluid, not dripping, not cracking |
Behaviour at low Temperature test method | SAE-AS23053 |
Colour | Black (BK) |
Heat Aging Test | 168h/138°C |
Heat Shock Test | 4h/225°C |
Material | Polyolefin, cross-linked (PO-X) |
Minimum Tensile Strength At Heat Aging | 7.3MPa |
PART DESCRIPTION | TA37 24-8-PO-X-BK |
Pack Cont. | 1.2m |
Package Content packed in | pcs. |
Printable | No |
Product Family | TA37 – thin wall adhesive lined |
Product Group | Heat shrinkable tubing 3:1 - Flame retardant |
Short Description | Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 24/8 black |
Shrink Ratio | 3:1 |
Type | TA37 24-8 |
Variant | Thin-Wall |
With inner glue (Yes/No) | Yes |
Adhesive | Hot melt adhesive |
Dielectric Strength | 19.7kV/mm |
Dielectric Strength test method | ASTM D876 |
ELV compliant Dir. Art. 4 (2) | YES |
Elongation at break | 200% |
Elongation at break test method | ASTM D638 |
Halogen-free | Yes |
Hazardous Goods | No |
Limited Fire Hazard | Yes |
Minimum Shrink Temperature | +120 °C |
Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
ROHS compliant | Yes |
Self extinguishing | Yes |
Softening Point Adhesive | +85 °C |
Specifications | conforms to BS6853, conforms to LUL E1042:A6, DIN EN ISO 4892-2, EN 45545-2, IEC 60068-2-5:2018, Test Sa2 (Solar radiation test) |
Specifications | |
Tensile Strength | 10.4MPa |
Test Method Tensile Strength | ASTM D638 |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
Volume Resistance | 10¹³ Ω cm |
Water Absorption | 1.0% |
|
|
Country of Origin | JP |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026444581 |
Packaging 1 - Height (m) | 0.05m |
Packaging 1 - Length (m) | 1.37m |
Packaging 1 - Qty | 15 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.01644m³ |
Packaging 1 - Weight (kg) | 1.71735kg |
Packaging 1 - Width (m) | 0.24m |
Packaging 3 - Height (m) | 0.26m |
Packaging 3 - Length (m) | 1.27m |
Packaging 3 - Qty | 75 |
Packaging 3 - Type | Carton |
Packaging 3 - Volume (m³) | 0.0859m³ |
Packaging 3 - Weight (kg) | 9.3kg |
Packaging 3 - Width (m) | 0.26m |
Packaging 4 - Height (m) | 0.964m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 450 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.925m³ |
Packaging 4 - Weight (kg) | 105.74kg |
Packaging 4 - Width (m) | 0.8m |
