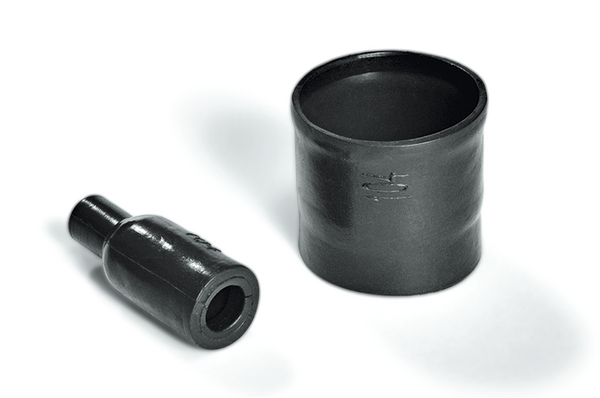

Helashrink 100 Series, with rib
Art.-No. 401-02033 | 102-4-GW24-PO-X-BK | Details

100 series supplied / fully recovered.

With circular grooved adaptor for strain relief
Combine with complementary adhesives for environmental sealing
Suitable for small cable diameters

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, MIL-Style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	102-4-GW24
Material	Polyolefin, cross-linked (PO-X)
Pack Cont.	1pc.
Package Content packed in	Bag
PART DESCRIPTION	102-4-GW24-PO-X-BK
Product Family	Helashrink 100 Series, with rib
Product Group	Bottle Shapes, MIL-Style

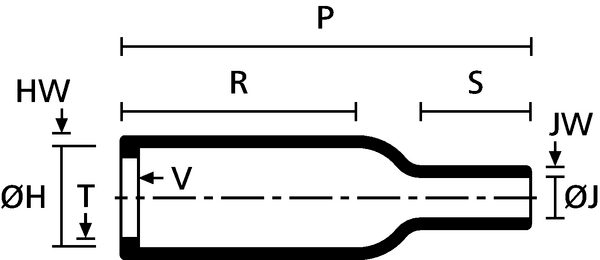

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	1.8mm
JW ± 20%	1.8mm
P ± 10%	73.7mm
R max	43.2mm
S nom	21mm
T ± 20%	1mm
Weight/Unit	0.00915kg

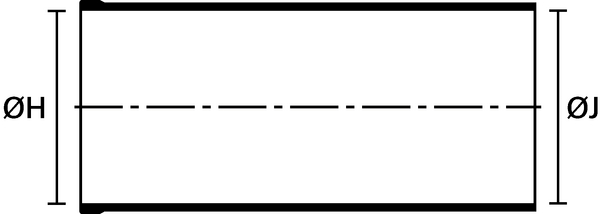

∅H max b	22.4mm
∅H min a	36.1mm
∅J max b	8.4mm
∅J min. a	36.1mm

Downloads

Moulded Shapes Brochure 2016

Download

Specifications

Adhesive	W24
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature - °C	+135 °C
Operating Temperature	-75 °C to +150 °C
Specifications
Tensile Strength	15MPa

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660401909
Packaging 1 - Height (m)	0.004m
Packaging 1 - Length (m)	0.016m
Packaging 1 - Qty	25
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0m³
Packaging 1 - Weight (kg)	0.228751kg
Packaging 1 - Width (m)	0.01m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
