Adhesive Labels
Art.-No. 557-00055 | TAGH86-336-WH |  Details

    This product is not available anymore.
    • Very clear and detailed image for use with graphics, single or sequential characters and especially barcodes
    • Smear-resistant, ultraviolet-resistant and chemical-resistant marking
    Add to watchlist

    Request your individual offer now

     Request quote
    Application In nearly all areas, but especially suitable for cable and wire identification in computer and electronic businesses. For problem-free printing, we recommend our software Tagprint PRO.

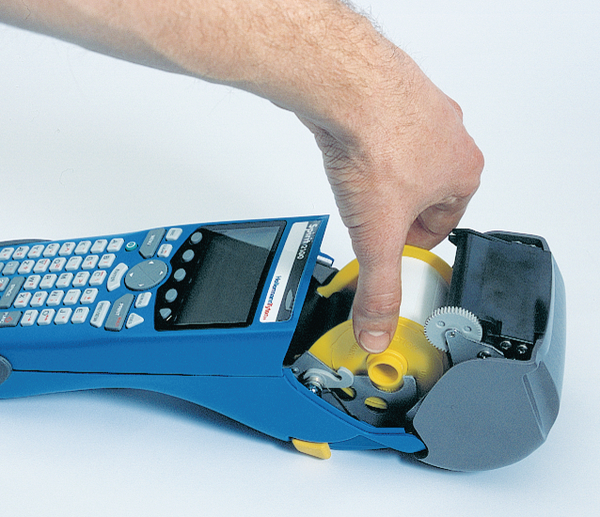

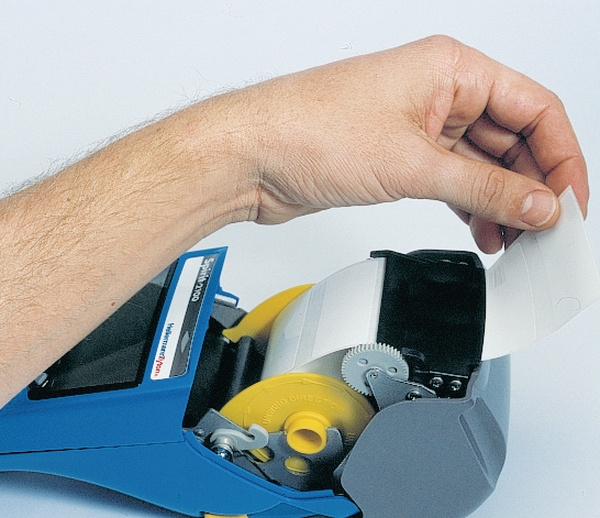

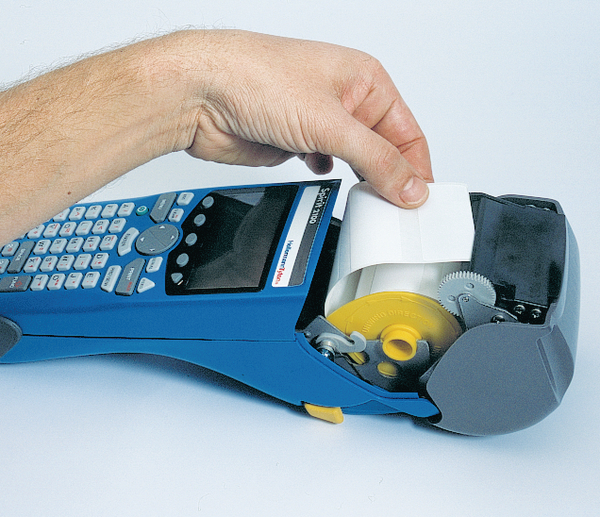

    Application Method Each roll of labels is loaded onto a reusable spindle. Simply drop the label roll into the printer, pull the labels over the top (like loading film into a camera) and close the cover. No need to mechanically feed and align the labels.
    Colour White (WH)
    Fixation Method Pasting / Stick
    Key product features weather resistant, chemical resistance
    Local order number TAGH86-336
    Material Type 336, Polyester, white (336)
    PART DESCRIPTION TAGH86-336-WH
    Pack Cont. 750pcs.
    Package Content packed in Reel
    Product Group Adhesive Labels
    Type TAGH86
    Variant Roller form
    With label space Yes

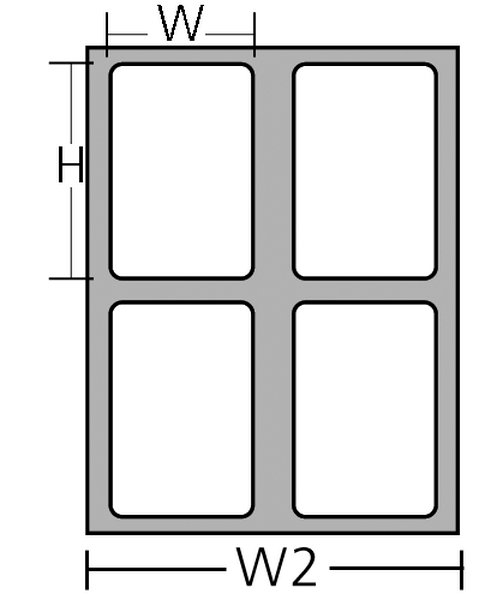

    H printable 6.35mm
    Height (H) 6.35mm
    Length (L) 6.35mm
    Print Method thermal transfer print
    Width (W) 50.8mm
    Width of LIner (WL) (imperial) 2.125"
    Width of Liner (WL) 53.97mm
    Adhesive Acrylic
    Adhesive Operating Temperature -40 °C to +149 °C
    CE Certification No
    Curing Temperature from +10 °C
    Operating Temperature -40 °C to +149 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL OCD link Link Link
    UL Recognized (US and Canada) Yes
    UL-File Number MH18396
    Country of Origin US
    GTIN-13 / EAN 4031026230634
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 0.3000kg
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 55121612
