Label, silver, thermal transfer print, 104.00mm, 75.0m
Art.-No. 596-31204 | TAGR3TD1-1204-SR Details

  • Replacement option for aluminium plates
  • For applications on flat surfaces
  • Allows the identification on critical surfaces, e.g. paints and plastic variants
  • Print labels with customer unique references
  • Use text, graphics and barcodes as required
Show more

Request your individual offer now

e-Learning

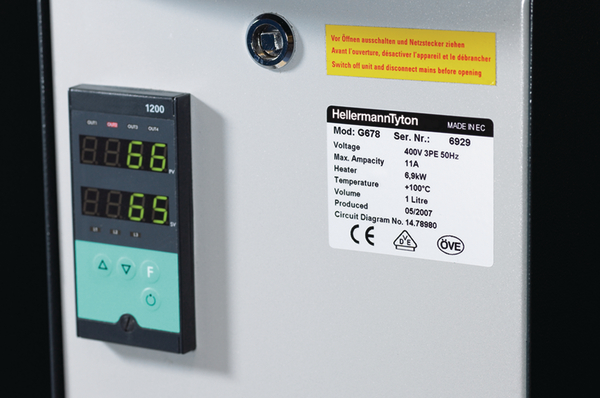

Application This silver-matt label is scratch-resistant and is ideal for usage as identification or name plate in industrial environments. The high temperature range suits a wide range of applications on flat surfaces. The adhesive is also suitable for critical surfaces like plastic and paint. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Excellent resistance to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour Silver matt (SR)
Local order number TAGR3TD1-1204-SR
Material Type 1204, Polyester (1204)
Mech. Material Properties permanent adhesive, suitable for critical surfaces
PART DESCRIPTION TAGR3TD1-1204-SR
Pack Cont. 75.0m

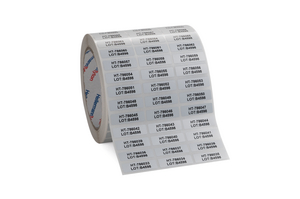

Package Content packed in Reel
Product Family Material 1204 (Silver)
Product Group Type label identification, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Plain Label for Thermal Transfer Printing 104.0 mm reel=75 m silver
Type TAGR3TD1
Print Method thermal transfer print
Print Method (Alternative) laser beam print
Thickness (T) 55.0µm
Thickness of Foil 53
Thickness of foil test method ISO 534
Weight/Unit 0.004kg

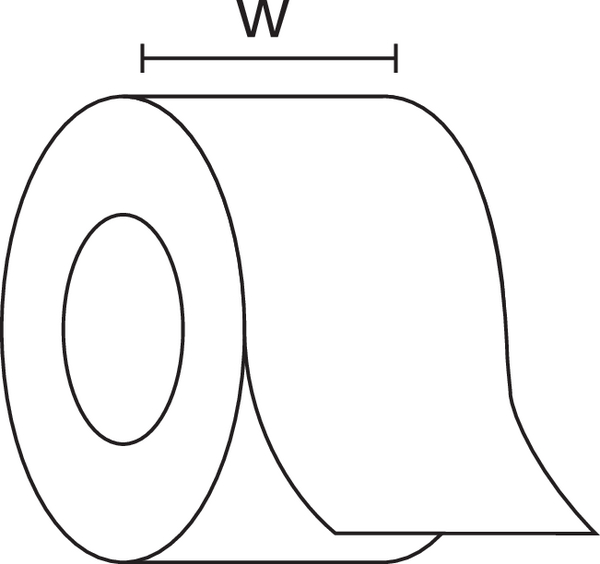

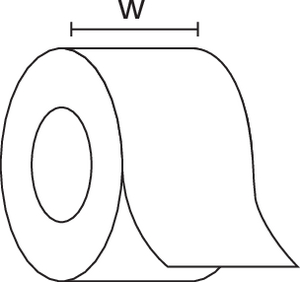

Width (W) 104.00mm
Width of Liner (WL) 108.00mm
Adhesive Acrylic
Curing Temperature from 0 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Initial tack 13N
Initial tack FINAT FTM 9
Operating Temperature -40 °C to +150 °C
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shear strength 1000min
Shear strength test method FINAT FTM 8
Shelf Life Minimum 1 year upon receipt / maximal 4 years after production date.
Specifications
UL Recognized (US and Canada) Yes
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026295411
Labels per Row 1pc.
Packaging 1 - Height (m) 0.064m
Packaging 1 - Length (m) 0.156m
Packaging 1 - Qty 75
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00156
Packaging 1 - Weight (kg) 0.300001kg
Packaging 1 - Width (m) 0.156m
Reel Length 75.00m
Storage Temperature +15 °C to +25 °C
Storage conditions 45% ±5% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness., Must be stored in a dark place.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
