Elbow Compression Fitting 90° IP65 ø20mm M20
Art.-No. 166-31604 | PCS20-90FMC-M20-NPB/PA6-ML Details

  • Multipart 90° compression fitting including elastomeric seal
  • Provides excellent tensile strength

Request your individual offer now

Application External thread, nickel plated brass. Fulfils IP65.
Colour Metal (ML)
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Metallic Fitting Type Compression, 90°
PART DESCRIPTION PCS20-90FMC-M20-NPB/PA6-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family PCS-90FMC 90° Elbow Compression Fitting, IP65
Product Group Fittings for metallic conduits with plastic coating
Short Description Elbow Compression Fitting 90° IP65 ø20mm M20
Thread type metric
Type PCS20-90FMC-M20
Type of connection Thread
Variant 90°-elbow

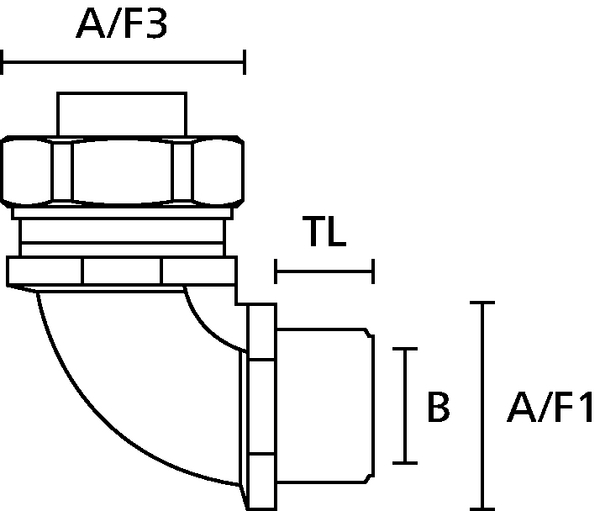

A/F Nut (A/F3) 29mm
Angle 90
Height (H) 24mm
Lowest inner diameter 15.3mm
Min. Bore Size (B) 15.3mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 0.81"
Thread Length (TL) 13.0mm
Thread Size M20
Weight/Unit 0.10397kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
IP-Rating IP65
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026307671
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 1.039701kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001180
ETIM 8.0 Key EC001180
ETIM 9.0 Key EC001180
