Fittings for metallic conduits SSC25-SM-M25

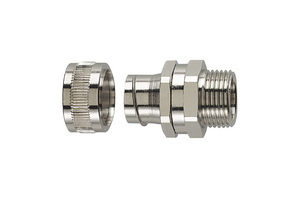

SSC-SM Swivel External Thread, Article number: 166-30423

Features

  • Two-part fitting of shell and body with external thread
  • Highly resistant to rust and corrosion
  • External thread swivels about main body
  • Provides tight, reliable hold of conduit
  • Can be secured with locknut

Certifications & Approvals

Application

Swivel external thread, stainless steel (SS316).

SSC-SM Swivel External Thread is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Fitting for metallic conduits with Swivel External Thread ø25mm M25
Features and Benefits Swivel external thread, stainless steel (SS316).
GLOBAL PART NAME SSC25-SM-M25-SS316-ML
Metallic Fitting Type Standard
Pack Cont. 1pc.
Package Quantity per Bag
Product Family SSC-SM Swivel External Thread
Product Group Fittings for metallic conduits
Thread type metric
Type of connection Thread
Variant Straight

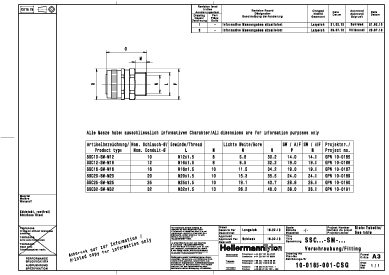

A/F Thread (A/F2) 29mm
Height (H) 29mm
Length (L) 43.7mm
Lowest inner diameter 19.1mm
Min. Bore Size (B) 19.1mm
Nominal ∅ 25mm
Nominal ∅ (imperial) 1"
Thread Length (TL) 10.0mm
Thread Size M25
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP40
Material Stainless Steel (SS316)
Operating Temperature - °C -100 °C to +600 °C
Specifications
EAN / GTIN 4031026306551
Packaging 1 - Height (m) 0.029m
Packaging 1 - Length (m) 0.155m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00072
Packaging 1 - Weight (kg) 0.13kg
Packaging 1 - Width (m) 0.16m
Weight 0.13kg
ETIM 5.0 EC001180
ETIM 6.0 EC001180
