Fittings with swivel internal thread HG28-90F-M25

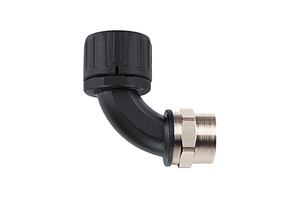

HG-90F 90° Elbow Swivel Internal Thread, IP66, Article number: 166-22604


  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Certifications & Approvals


90° elbow swivel brass internal thread.

HG-90F 90° Elbow Swivel Internal Thread, IP66 is suitable for following markets and industries

Brass Thread (Y/N) Yes
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Elbow Fitting 90° with Swivel Internal Thread IP66 ø28mm M25
Features and Benefits 90° elbow swivel brass internal thread.
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family HG-90F 90° Elbow Swivel Internal Thread, IP66
Product Group Fittings with swivel internal thread
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type metric
Type HG28-90F-M25-PA66/NPB-BK-10ST
Type of connection Snap-connection
Variant 90°-elbow
A/F Thread (A/F2) 29mm
Length (L) 81mm
Lowest inner diameter 19mm
Min. Bore Size (B) 19.0mm
Nominal ∅ 28mm
Nominal ∅ (imperial) 1-1/8"
NW ∅ 23mm
Outside ∅ max (OD max.) 44mm
Thread Length (TL) 15mm
Thread Size M25
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
IP-Rating IP66
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB)
Material of fitting ETIM Polyamide (PA)
Operating Temperature - °C -50 °C to +135 °C
Specifications UL-Recognized
EAN / GTIN 4031026304342
Packaging 1 - Height (m) 0.044m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00211
Packaging 1 - Weight (kg) 0.78kg
Packaging 1 - Width (m) 0.16m
Weight 0.78kg
ETIM 5.0 EC001176
ETIM 6.0 EC001176
