29/03/2024

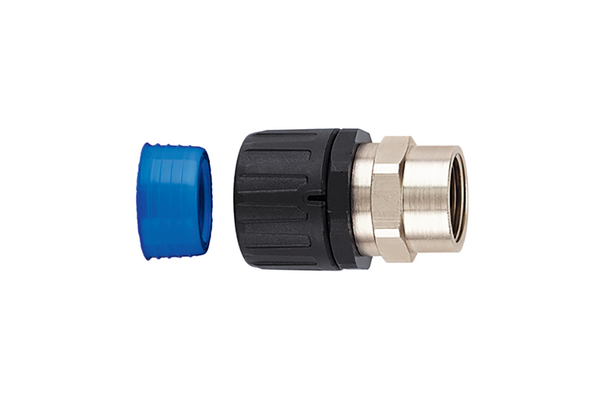

Straight Fitting with Swivel Internal Thread IP68 ø13mm PG9
Art.-No. 166-22009 | HGL13-SF-PG9-PA66/NPB/TPE-BK Details

  • One piece, fast fit
  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus

Request your individual offer now

Application Straight swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k.
Brass Thread (Y/N) Yes
Colour Black (BK)
Local order number HGL10-SF-PG7-PA66/NPB/TPE-BK-10ST
Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION HGL13-SF-PG9-PA66/NPB/TPE-BK
Product Family HGL-SF Straight Swivel Internal Thread, IP68
Product Group Fittings with swivel internal thread
Short Description Straight Fitting with Swivel Internal Thread IP68 ø13mm PG9
Strain Relief Function (Y/N) No
Swivel Thread (Y/N) Yes
Thread type not applicable
Type of connection Snap-connection
Variant Straight

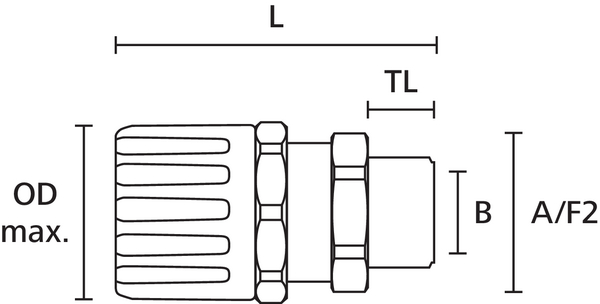

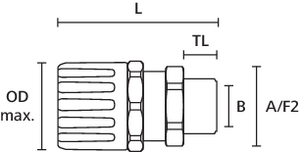

A/F Thread (A/F2) 22mm
Length (L) 52mm
Lowest inner diameter 11.0mm
Min. Bore Size (B) 11.0mm
Nominal ∅ 13mm
Nominal ∅ (imperial) 0.5"
NW ∅ 10mm
Outside ∅ max (OD max.) 24mm
Thread Length (TL) 14mm
Thread Size PG9
Weight/Unit 0.0317kg
CAS Number 7439-92-1
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66, IP67, IP68, IP69k
Operating Temperature -50 °C to +135 °C
Specifications
Specifications UL-Recognized
Country of Origin GB
Customs Number 74122000
GTIN-13 / EAN 4031026303833
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00115
Packaging 1 - Weight (kg) 0.317001kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 100
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 3.47001kg
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001176
ETIM 8.0 Key EC001176
ETIM 9.0 Key EC001176
