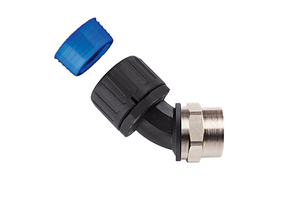

Elbow Fitting 45° with Swivel Internal Thread IP68 ø42mm M50
Art.-No. 166-24404
| HGL42-45F-M50-PA66/NPB/TPE-BK
|
Details
- One piece, fast fit
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Request your individual offer now
Request quote
More products in this product group:
Application | 45° elbow swivel brass internal thread with conduit seal and washer. Fulfils IP66, IP67, IP68 and IP69k. |
Brass Thread (Y/N) | Yes |
Colour | Black (BK) |
Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE) |
PART DESCRIPTION | HGL42-45F-M50-PA66/NPB/TPE-BK |
Pack Cont. | 2pcs. |
Package Content packed in | Bag |
Product Family | HGL-45F 45° Elbow Swivel Internal Thread, IP68 |
Product Group | Fittings with swivel internal thread |
Short Description | Elbow Fitting 45° with Swivel Internal Thread IP68 ø42mm M50 |
Strain Relief Function (Y/N) | No |
Swivel Thread (Y/N) | Yes |
Thread type | metric |
Type | HGL42-45F-M50 |
Type of connection | Snap-connection |
Variant | 45°-elbow |
CAS Number | 7439-92-1 |
Critical Substance |
Lead in Copper alloy |
EC Number | 231-100-4 |
ELV compliant Dir. Art. 4 (2) | YES |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
IP-Rating | IP66, IP67, IP68, IP69k |
Operating Temperature | -50 °C to +135 °C |
ROHS compliant | Yes |
Specifications | |
Specifications | UL-Recognized |
