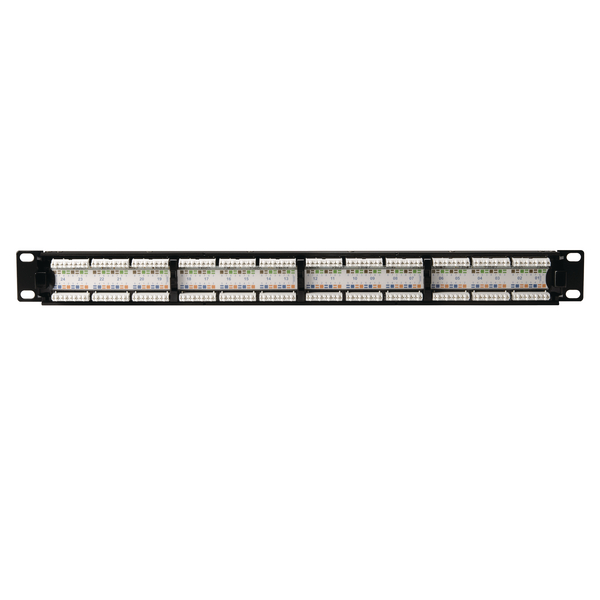

Universal 110 Category 6 PP110C624

1U 24 Port Panel, Article number: 853-50002

Features

  • Exceeds Category 6 performance standards
  • Configured for T568A and T568B wiring
  • 110 punch down IDC
  • Write-on labels provided for easy identification
  • Optional rear cable manager available
  • Available with or with Rack Snaps
  • Backward compatible to Category 5e and Category 5
Colour Black (BK)
Description The Universal 110 Category 6 range of patch panels offer exceptional performance and are also available in 1U 48 port, 2U 48 port and 12 port vertical versions. The panel is constructed of 4 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of port damage or failure. The Universal 110 Panel is supplied with or without Rack Snap mounting fixings and an optional rear cable manager is also available. The Universal 110 Category 6 products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system.
Features and Benefits • 6 port modules can be replaced easily if damaged during installation • Front face provides an attractive, flush appearance • Write-on labels provided for easy identification • Self-adhesive labels available for use with HellermannTyton TagPrint Pro software* • Configured for 568A or 568B wiring on same panel, thus eliminating the need for extra inventory • Lightweight aluminum rear cable manager can be ordered separately to provide a neat and organized installation using Grip Ties • Sturdy and smooth rolled edges • Clear plastic channel protects PCB and allows easy viewing of wiring label • Utilizes same innovative crosstalk technology used in HellermannTyton modular jacks with 10 internal contacts to reduce NEXT
GLOBAL PART NAME PP110C624
Pack Cont. 1
Package Quantity per Box
Performance Category Category 6 (Class E)
Port count 24
Product Family 1U 24 Port Panel
Product Group Universal 110 Category 6
Technical Description The Universal 110 Category 6 range of panels is available in standard 1U 24 port, 1U 48 port, 2U 48 port and a vertical 12 port configuration. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each PCB module is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Universal 110 Category 6 Panel offers backward compatibility with Category 5e, Category 5 and voice products.
Type PP110C624
Depth (D) 34.0mm
Height (H) 44.0mm
Height, Units 1U
Width (W) 483.0mm
Dimensions W x H x D 483.0 mm x 44.0 mm x 34.0 mm
EAN / GTIN 5022660849039
UNSPSC Key 43223309
