Smart Meter Cable Stripping Tool

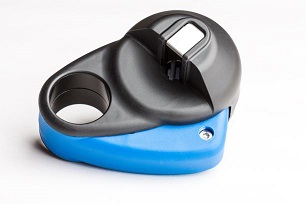

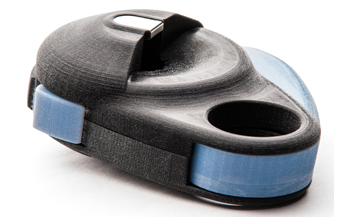

CORE16 and CORE25:  A smarter solution


HellermannTyton has also introduced its innovative CORE tool to market. Available for 16mm and 25mm cables, the CORE tool strips cables at the precise length for smart meter installation, saving time and money and eliminating unnecessary waste.

It also safely collects cable off cuts meaning no waste is left behind after the work is completed, providing an easy and compliant installation.

The inner and outer sheathing is removed by the CORE tool leaving a shoulder that allows the cable to fit perfectly inside the Smart Meter collars.





Insert the cable, twist to strip cable







Features and Benefits

  • To be used in conjunction with smart meter clips and collars
  • Speeds up installation time
  • Strips the cable correctly every time
  • Reduces the amount of cable wasted
  • Ergonomic design
  • Reduces risk of injury compared to using conventional methods
TYPE Application For Cable Diameters
CORE16 Smart Meter clip and collars 16mm2
CORE25 Smart Meter clip and collars 25mm2

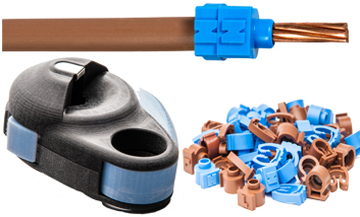

Smart Meter Clips and Collars

Smart Meter Cable Identification:

As the installation of smart meters is rolled out across the UK and Europe it is more critical for installers to have a quick, safe and uniform identification method for cables.  With a built in revenue protection system the smart meter clips and collars save time and cost compared to alternative methods.



Push collar onto cable          Push clip up to secure      Final Indent



Features and Benefits

  • Quick, clean and safe installation
  • Identification moulded onto the collar and clip
  • No waste disposal
  • Provides revenue protection
  • Colour coded
  • Captive when fitted
  • Low profile
  • Adaptable to multiphase
  • No application tool needed
  • Suitable for 16mm and 25mm cables



TYPE ID Mark Desc Colour Pack Cont Article No
SMCLIPBRL L Clip Brown 1000 539-00002
SMCLIPLBN N Clip Light blue 1000 539-00003
SMCOLLARBRL L Collar Brown 1000 539-00000
SMCOLLARLBN N Collar Light blue 1000 539-00001
