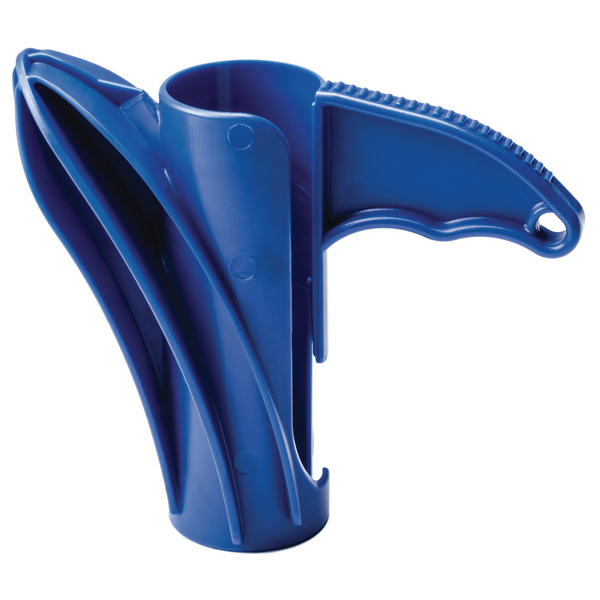

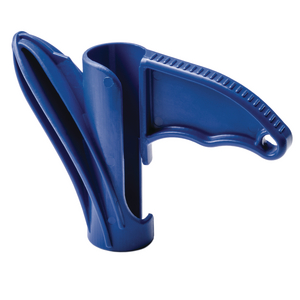

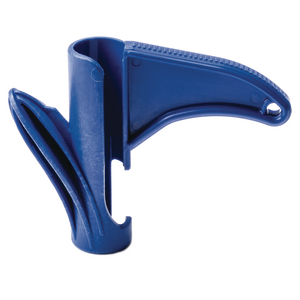

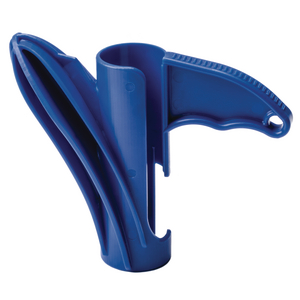

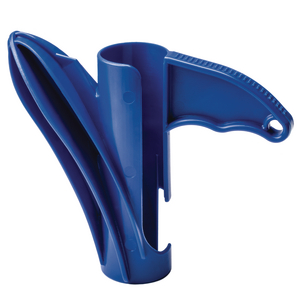

Applicator Tool HAT30

HAT, Article number: 161-60005


  • Bundle cable rapidly and effortlessly
  • Glides smoothly and securely through cover
  • Easy insertion of cable

Certifications & Approvals


The HAT application tools are used with Helawrap HWPP, HWPAV0 and HWPPMC cable covers to bundle and protect cables rapidly and efficiently. There is a specially designed HAT application tool for each size Helawarp cable cover.

HAT is suitable for following markets and industries

Application 2 Ideal for bundling and protecting cables and wires can be removed and reapplied easily. Due to its excellent flame-retardant properties Helawrap Polyamide 6 VO is used wherever fire protection is essential.
Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Applicator tool for professional 30mm cable cover
Pack Cont. 10pcs.
Package Quantity per Bag
Product Family HAT
Product Group Applicator Tool
Type HAT30PACK10
Nominal ∅ 30mm
Nominal ∅ (imperial) 1-3/16"
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6 (PA66)
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 5022660178351
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0026
Packaging 1 - Weight (kg) 0.04kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 10
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 3.7kg
Packaging 3 - Width (m) 0.4m
Weight 0.77lbs
Weight 0.04kg
ETIM 5.0 EC001177
ETIM 6.0 EC001177
UNSPSC Key 39131604
