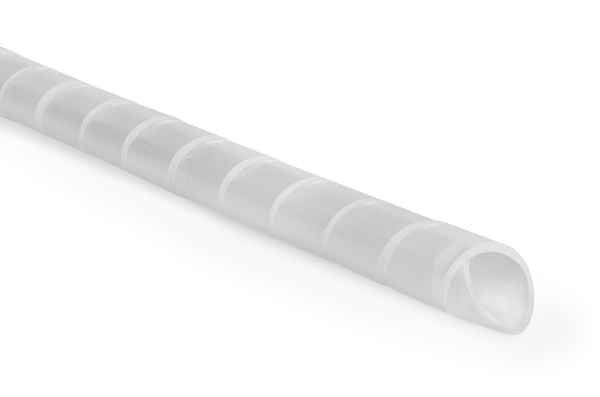

Standard Polyethylene Spiral Binding for general applications SBPE16

SBPE, Article number: 161-41300

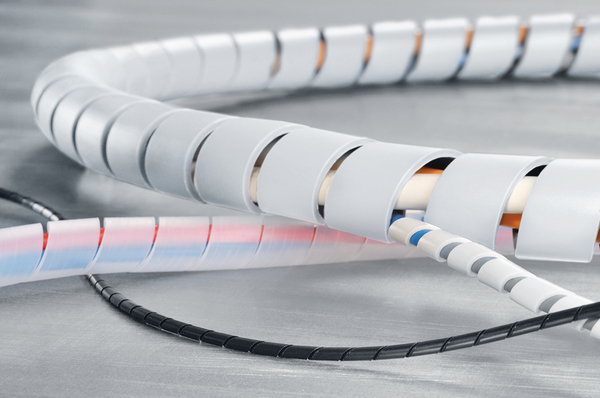

  • Organises and protects cables and hoses
  • Suitable for retro-fitting
  • Cables branch out at any point
  • Wide range of diameters and colours

Certifications & Approvals

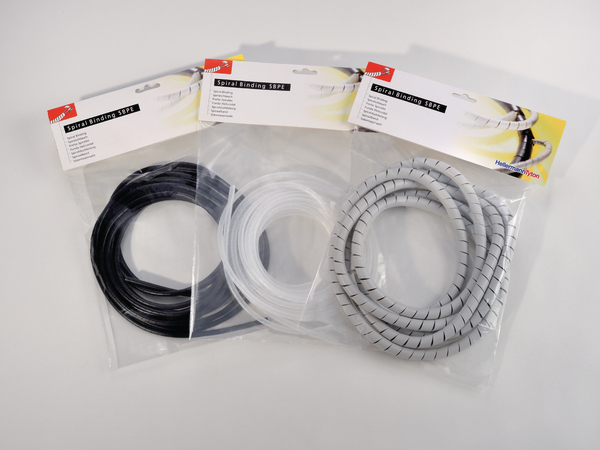

SBPE spiral binding is suitable for standard electrical applications and panel building and plant engineering. Sizes 4 and 9 are also available in practical 5 metre lengths.

SBPE is suitable for following markets and industries

Application 2 Available in flame retardant PA6 (SBPAV0) and high performance PTFE (SBPTFE).
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Spiral binding 20 mm - 150 mm, PE, natural, 30 m
Features and Benefits A versatile way of protecting and tidying wires, cables and tubes, wires can easily be broken out at any point. Available in flame retardant polythene.
Pack Cont. 30m
Package Quantity per Box
Product Family SBPE
Product Group Standard Polyethylene Spiral Binding for general applications
Variant Spiral Binding
Bundle ∅ max. 150mm
Bundle ∅ min. 20mm
Bundlediamter Range ETIM (Braided Sleeving) 20-150
Nominal ∅ 16mm
Nominal ∅ (imperial) 5/8"
Pitch (P) 16.0mm
Wall (WT) 1.6mm
∅ (D) 16mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogenfree Yes
Hazardous goods No
Intermittent Operating Temperature +120°C
Material Polyethylene (PE)
Operating Temperature - °C -60 °C to +80 °C, intermittent +120 °C
EAN / GTIN 5022660548918
Packaging 3 - Height (m) 0.255m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 30
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0306
Packaging 3 - Weight (kg) 2.9kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 960
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 113.8kg
Packaging 4 - Width (m) 0.8m
Reel Length 30m
Weight 8kg
ETIM 5.0 EC002604
ETIM 6.0 EC002604
