Screw Fixing Mounts FH50

LKM / CL / FH with curved design for sideways fixing, Article number: 151-61519

Features

  • Screwable mounts for fixing cable sideways
  • Ideal for securing large, heavier bundles
  • Suitable for cable ties up to 4.6 mm wide

Certifications & Approvals

Application

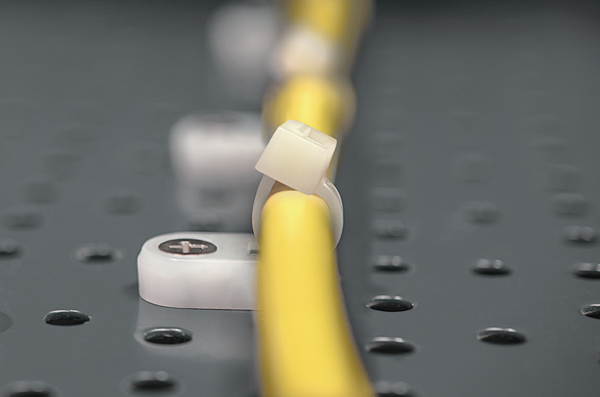

In areas with limited space, these mounting bases allow the cable to be offset from the fixing hole, and can be installed in the equipment prior to the cable installation. A major cost saving can be made by using these products as many different sizes of standard cable ties can be used, reducing the need to stock a wide range of specific fixing ties.

LKM / CL / FH with curved design for sideways fixing is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Screw Fixing Mounts with curved design 22.2x11.3 mm, sideways fixing, natural
Fixation Method Screw Mounting and Rivet
GLOBAL PART NAME FH50-PA66-NA
Pack Cont. 500pcs.
Package Quantity per pieces
Product Family LKM / CL / FH with curved design for sideways fixing
Product Group Screw Fixing Mounts
Type FH50.NN6P
for Hole ∅ (FH) 7.1 mm
Height (H) 6.2mm
Length (L) 22.2mm
Strap Width max. (G) 4.6mm
Width (W) 11.3mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660303234
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00288
Packaging 1 - Weight (kg) 0.6kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 6000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.85kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 178.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.2kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
