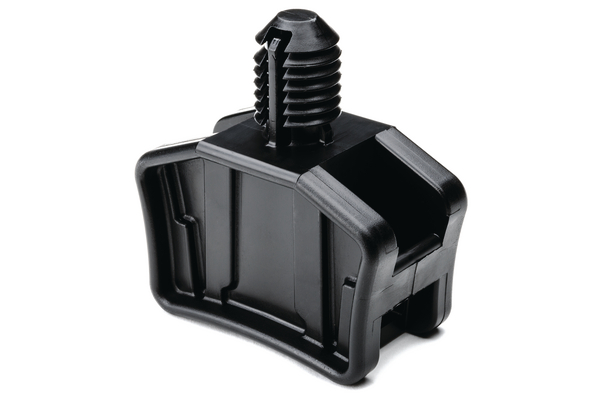

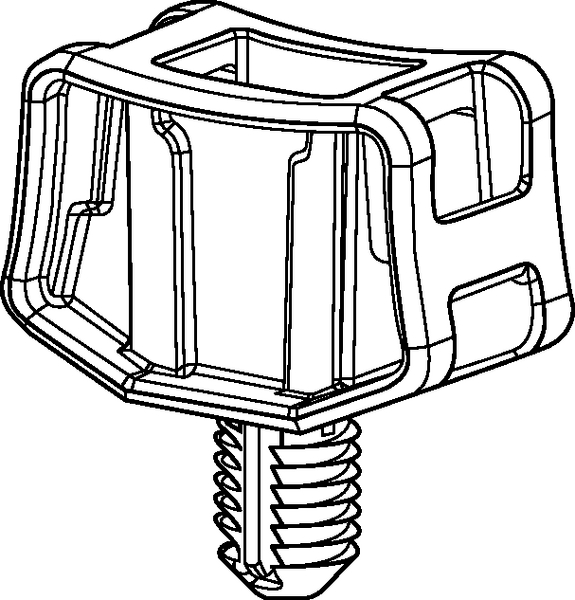

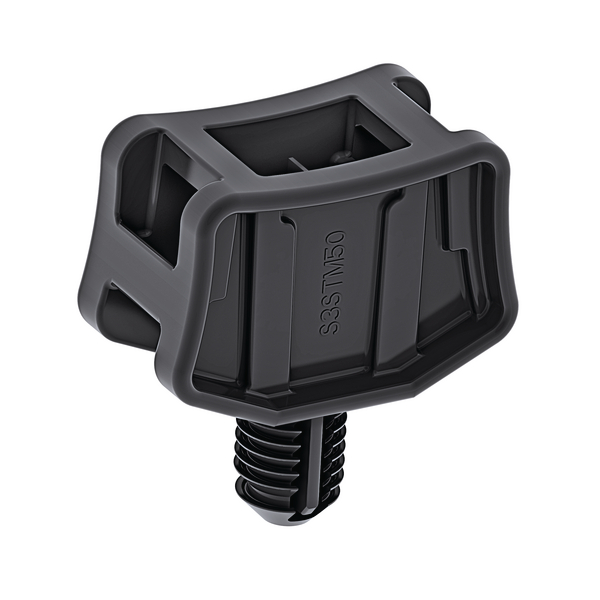

Fixing Elements with Fir Tree, for Distance Routing S3STM50

S3STM50, Article number: 151-29500

Features

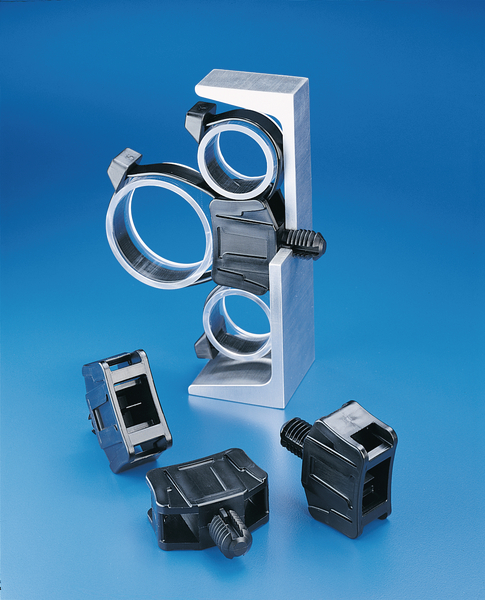

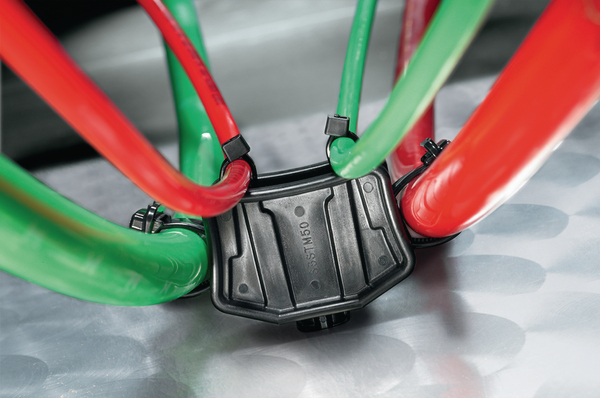

  • For parallel routing of four bundles
  • Secure alignment to the bundle due to H-design
  • For cable ties up to 12.7 mm wide
  • Pre-fixing of tie with integrated nose

Certifications & Approvals

Application

With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.

S3STM50 is suitable for following markets and industries

Colour Black (BK)
Fixation Method with Fir Tree (Mounts)
GLOBAL PART NAME S3STM50-PA66HIRHSUV-BK
Pack Cont. 100
Package Quantity per Bag
Product Family S3STM50
Product Group Fixing Elements with Fir Tree, for Distance Routing
Type S3STM50-MC3-BK-C1
Bundle ∅ max. 127.0mm
Bundle ∅ min. 127.0mm
for Hole ∅ (FH) 12.7 - 13.7 mm
for Panel Thickness min - max 1.9 - 13 mm

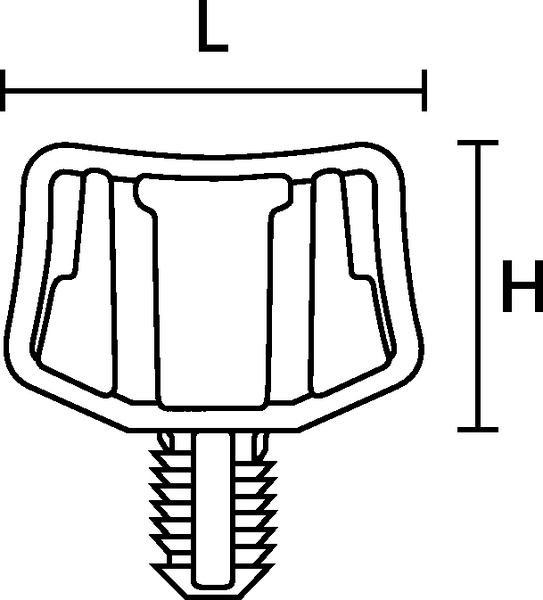

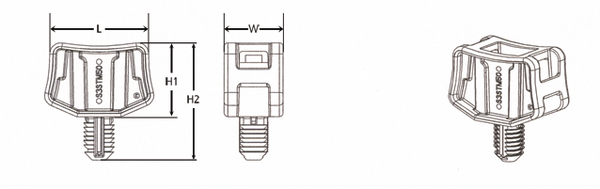

Height (H) 35.0mm
Height (H2) 55.0mm
Length (L) 50.0mm

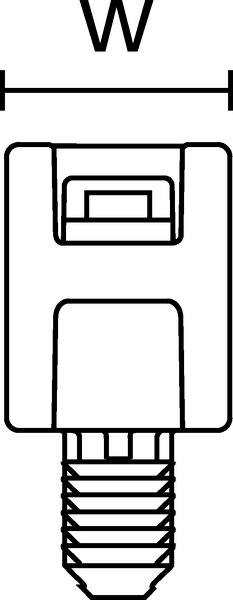

Width (W) 22.0mm
∅ max. 1. loop 127.0mm
∅ per loop max. 127.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Min. Extr. Force (lbs) 200.0lbs
Min. Extraction Force (N) 890N
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026312484
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0039
Packaging 1 - Weight (kg) 1.5kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.225m
Packaging 3 - Length (m) 0.605m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0538
Packaging 3 - Weight (kg) 8.35kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.24m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.19
Packaging 4 - Weight (kg) 121.2kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
