Cable Ties for heavy duty application WSS

Article number: 111-12300

Features

  • Wide strap is designed to minimize pinching of soft hoses and convoluted tubing
  • Low profile head
  • Clamping rails on the bottom of head to increase grip on round bundles

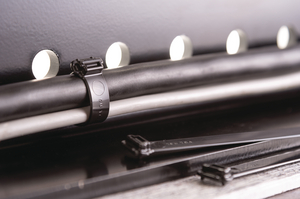

  • Accommodates a large range of bundle diameters: 9.5mm - 104.7mm
  • Flexible strap
  • Bent tip for quick insertion into mounts

Certifications & Approvals

Application

The very flexible wide strap is used in heavy-duty application where limited room is offered for the application. It is therefore a valued product in all areas of the mass transit, construction- and automotive industry.

WSS is suitable for following markets and industries

Application Tool MK9P, EVO9, EVO9HT, MK9SST
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Cable Tie 230x12.7 black
Fixation Method None
GLOBAL PART NAME (auto set) WSS-PA66HIRHSUV-BK
Identification Plate Position none
Pack Cont. 300
Package Quantity per Bag
Product Group Cable Ties for heavy duty application
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type WSS-HIRHS-BK-D1
Variant Inside Serrated
Bundle ∅ max. 58.4mm
Bundle ∅ min. 9.7mm
Cable Tie Head Height (Metric) 5.6mm
Cable Tie Head Length (metric) 10.2mm
Cable Tie Head Width (metric) 19.8mm
Length (L) 231.0mm
Min.Tensile Strength 535.0N
Strap Width max. (G) (imperial) 0.78"
Thickness (T) 1.4mm
Width (W) 12.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous goods No
Material Polyamide 6.6, high impact modified, heat and UV stabilised (PA66HIRHSUV)
Operating Temperature - °C -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026311647
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.29m
Packaging 1 - Qty 300
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00667
Packaging 1 - Weight (kg) 1.305kg
Packaging 1 - Width (m) 0.23m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 1200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 5.83kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 137.6kg
Packaging 4 - Width (m) 0.8m
Weight 0.0092lbs
Weight 0.0042kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
