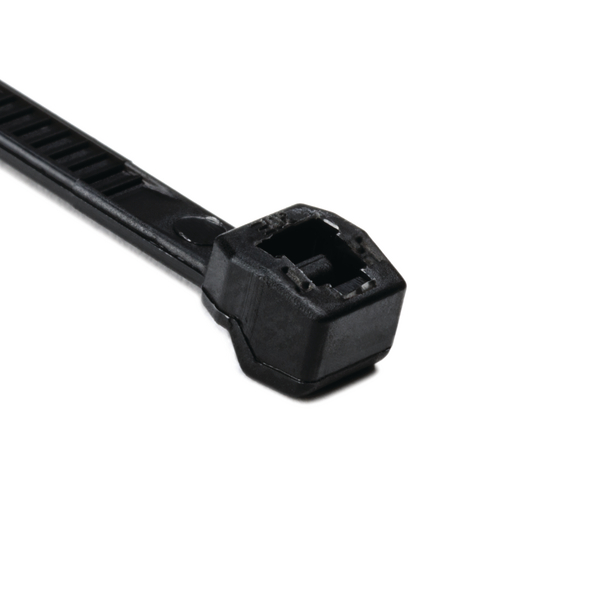

Cable Ties for thin-walled bundles T30ROS

OS-Series, Article number: 118-00064

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +150 °C
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cables are being installed, e. g. automotive and aircraft industry. OS ties made from PA66V0 material are suitable for applications where safety regulations are required, e.g. reduction of smoke and dangerous gases.

OS-Series is suitable for following markets and industries

Application 2 Applications - These ties are used in many areas where thin - walled or soft insulation wires and cable are being installed e.g. mass transit, data installations and electronics.
Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie outside serrated 145x3.4 mm, heat stabilised, natural
Features and Benefits The ever increasing demands for tighter bundles in cable installations has led to problems with the conventional inside serrated cable tie design, causing damage to cable insulation, particularly in vibration environments. The Outside Serrated range of ties overcomes these problems offering high tensile strengths, low insertion forces and a smooth surface to the insulation minimising indentation. The curved head allows the tie to follow the contours of the cable and take up less space than other cable tie designs.
Fixation Method None
GLOBAL PART NAME T30ROS-PA66HS-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family OS-Series
Product Group Cable Ties for thin-walled bundles
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T30ROS.HN3P
Variant Outside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 1.6mm
Length (L) 145mm
Min.Tensile Strength 135N
Thickness (T) 1.2mm
Width (W) 3.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026313177
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.204m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00064
Packaging 1 - Weight (kg) 0.07kg
Packaging 1 - Width (m) 0.126m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 10000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 7.65kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 174.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
