Cable Ties inside serrated RELK2M

RELK-Series up to 200 N loop tensile strength, Article number: 115-02000

Features

  • Releasable and reusable cable tie available in black and natural colours

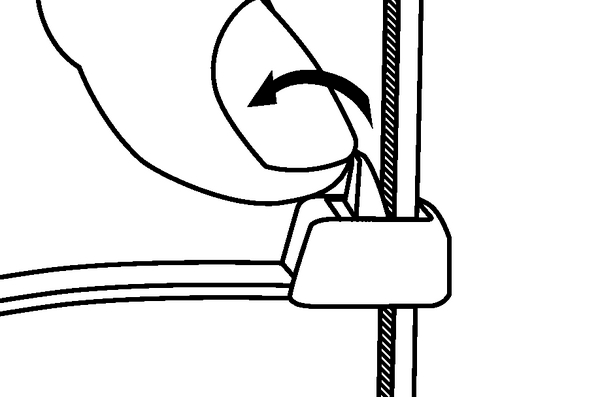

  • Extended trigger for simple and quick release of ties
  • Inside serration for a strong hold around the bundle
  • Available in various lengths

Certifications & Approvals

Application

Used in a wide range of industries, these releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, e. g. theatres, outdoor events or prototype harness work.

RELK-Series up to 200 N loop tensile strength is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 250x4.6 mm, black
Fixation Method None
GLOBAL PART NAME RELK2M-PA66-BK
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family RELK-Series up to 200 N loop tensile strength
Product Group Cable Ties inside serrated
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RELK2M.NB3P
Variant Inside Serrated

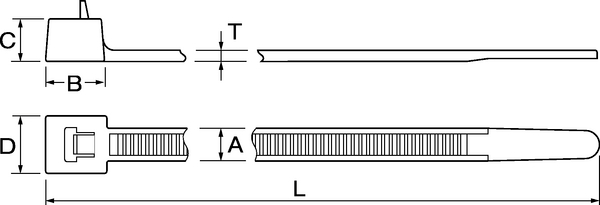

Bundle ∅ max. 65.0mm
Bundle ∅ min. 5.0mm
Length (L) 250mm
Min.Tensile Strength 200N
Thickness (T) 1.5mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications IEC 60092 series, IEC 62275:2006
EAN / GTIN 5022660019371
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.282m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.21kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0452
Packaging 3 - Weight (kg) 8.4kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 222.6kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 1.2kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
