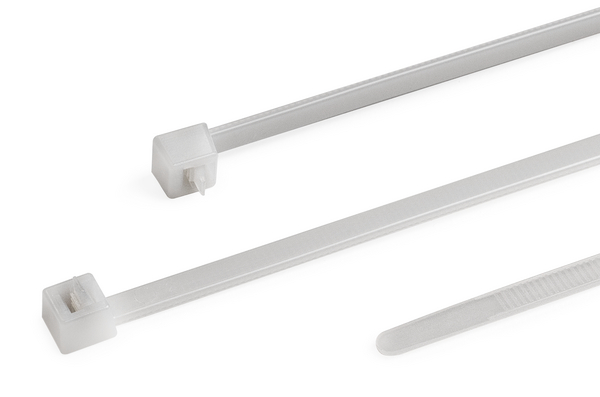

Cable Ties inside serrated RELK2R

RELK-Series up to 200 N loop tensile strength, Article number: 115-02202

Features

  • Releasable and reusable cable tie available in black and natural colours
  • Extended trigger for simple and quick release of ties
  • Inside serration for a strong hold around the bundle
  • Available in various lengths

Certifications & Approvals

Application

Used in a wide range of industries, these releasable and reusable ties are ideal where temporary installation or the addition or removal of cables is required, e. g. theatres, outdoor events or prototype harness work.

RELK-Series up to 200 N loop tensile strength is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Releasable Cable Tie 200x4.6 mm, natural
Fixation Method None
GLOBAL PART NAME RELK2R-PA66-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family RELK-Series up to 200 N loop tensile strength
Product Group Cable Ties inside serrated
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RELK2R.NN3P
Variant Inside Serrated
Bundle ∅ max. 50.0mm
Bundle ∅ min. 5.0mm
Cable Tie Head Height (Metric) 6.0mm
Cable Tie Head Length (metric) 8.3mm
Cable Tie Head Width (metric) 8mm
Length (L) 200mm
Min.Tensile Strength 200N
Thickness (T) 1.5mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications IEC 60092 series, IEC 62275:2006
UL OCD link ZODZ2.E64963
UL-File Number E64963
EAN / GTIN 5022660315527
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.282m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.17kg
Packaging 1 - Width (m) 0.136m
Packaging Content SKU Unit pieces
Weight 1kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
