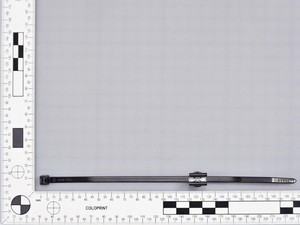

2-Piece Fixing Ties for Edges, twistable CBTO50R

CBTO50R for max. bundle diamater 47.0 mm, rotatable 90 °, Article number: 156-01601

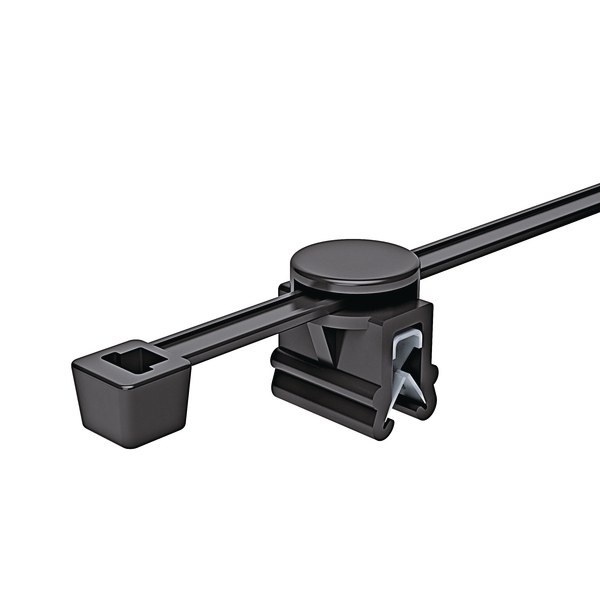

Features

  • Easy assembly, just clip on per hand ?
  • For edges of 1 – 3 mm or 3 – 6 mm
  • Integrated metal clamp holds clip firmly in place
  • Clamp consists of double tempered steel spring
  • Ideal for applications where holes or adhesives are not suitable

Certifications & Approvals

Application

These cable ties and Edge Clip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

CBTO50R for max. bundle diamater 47.0 mm, rotatable 90 ° is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)

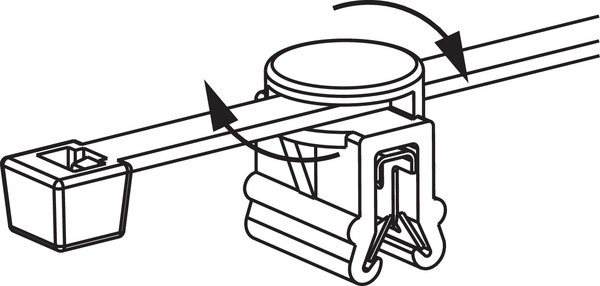

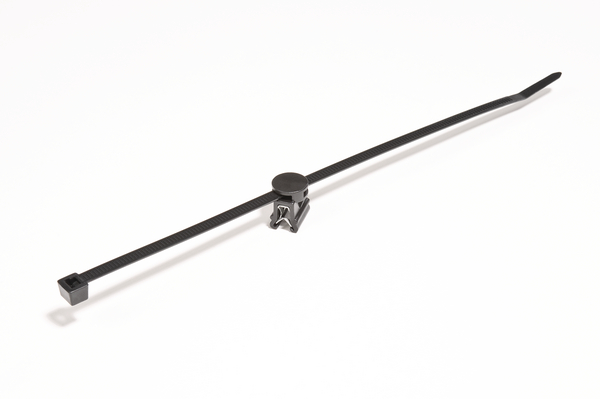

Description These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
Description Short (BMEcat) (max. 150 characters) Twistable 2-Piece Fixing Tie for Edges 200x4.6 black
Fixation Method Edge Clips with tie
GLOBAL PART DESCRIPTION CBTO50R-PA66HS/PA66HIRHS-BK
Identification Plate Position none

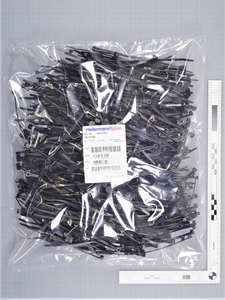

Pack Cont. 500pcs.
Package Quantity per Bag
Product Family CBTO50R for max. bundle diamater 47.0 mm, rotatable 90 °
Product Group 2-Piece Fixing Ties for Edges, twistable
Releasable Closure (Yes/No) No
Type CBTO50R.HB6P
Variant Inside Serrated

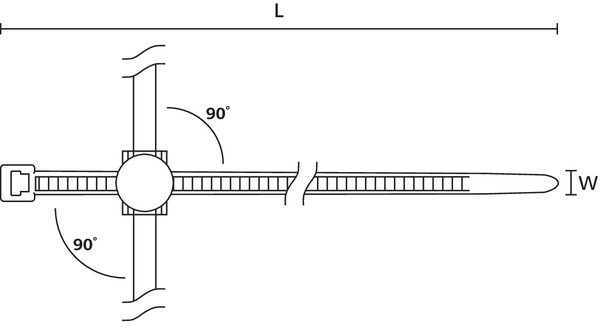

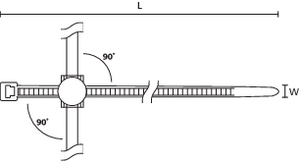

Bundle ∅ max. 47.0mm
Bundle ∅ min. 2.0mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.2mm
Height (H2) 15.2mm
Length (L) 202mm
Length (L2) 13.2mm
Min.Tensile Strength 225N
Panel Thickness max. 1.0 – 3.0mm
Strap Width max. (G) 4.6mm
Strap Width max. (G) (imperial) 0.18"
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 12.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026233055
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.4745kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.616kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 172.44kg
Packaging 4 - Width (m) 0.8m
Quantity of UK Pallet 15000
Weight 1.442kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
