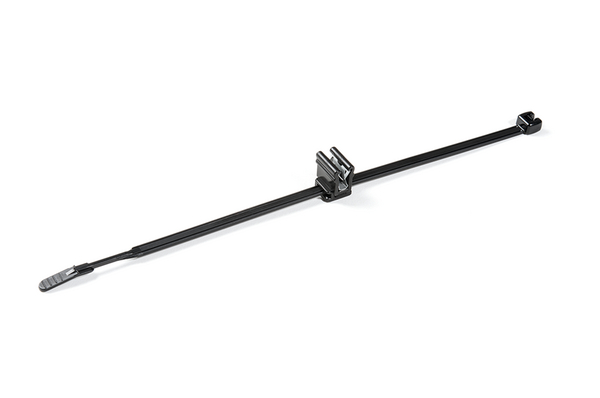

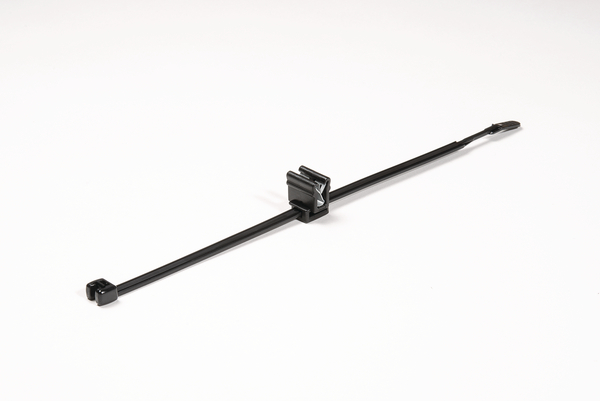

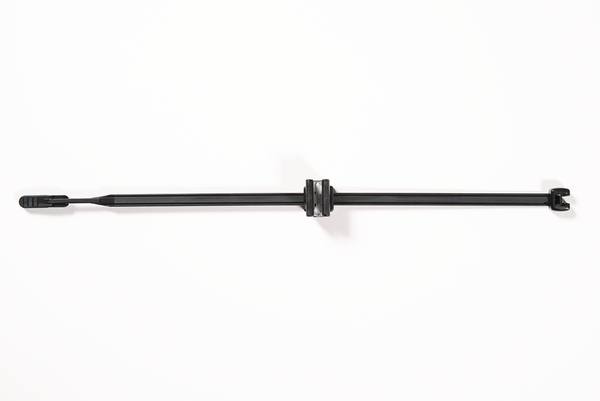

2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Top Fixing Q50REC4A

EdgeClip-Family, Article number: 156-01085

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip and Q-tie
  • A perfect complement within our Q-Series range
  • Unique and innovative cable tie with open-head design
  • Time saving solution due to quick and simple installation
  • Q-tie saves more than 25 % of usual working time
  • Cable tie head can be moved after bundling
  • For edges of 1 – 3 mm

Certifications & Approvals

Application

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie 200x4.6 for Edges 1-3 mm UV-black
Fixation Method EdgeClip, top, assembled, 2 piece
Global Part Name Q50REC4A-PA66W-BK
Identification Plate Position none
Manufacturer Type Q50REC4A PA66W BK 50

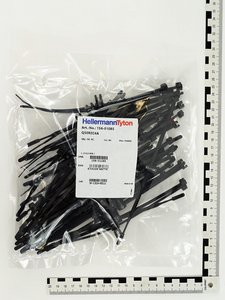

Pack Cont. 50pcs.
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 1.0 - 3.0 mm, Top Fixing
Quantity per Bag
Releasable Closure (Yes/No) No
Type Q50REC4A-W-BK-L1
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 6.0mm
for Panel Thickness min - max 1 - 3 mm
Height (H) 1.5mm
Length (L) 210.0mm
Min.Tensile Strength 220N
Thickness (T) 1.5mm
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous goods No
Material Polyamide 6.6, UV-resistant (PA66W)
Operating Temperature - °C -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
EAN / GTIN 4031026462776
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.265m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00335
Packaging 1 - Weight (kg) 0.1663kg
Packaging 1 - Width (m) 0.23m
Packaging 2 - Height (m) 0.204m
Packaging 2 - Length (m) 0.591m
Packaging 2 - Qty 1500
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.048
Packaging 2 - Weight (kg) 5.789kg
Packaging 2 - Width (m) 0.398m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 136.9kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
ETIM 5.0 EC000046
ETIM 6.0 EC000046
