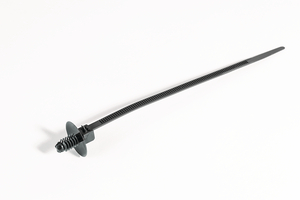

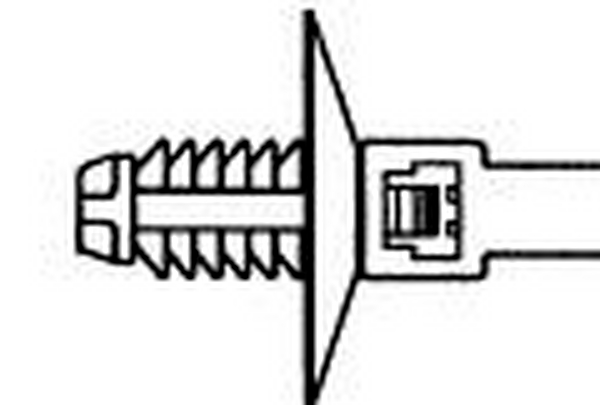

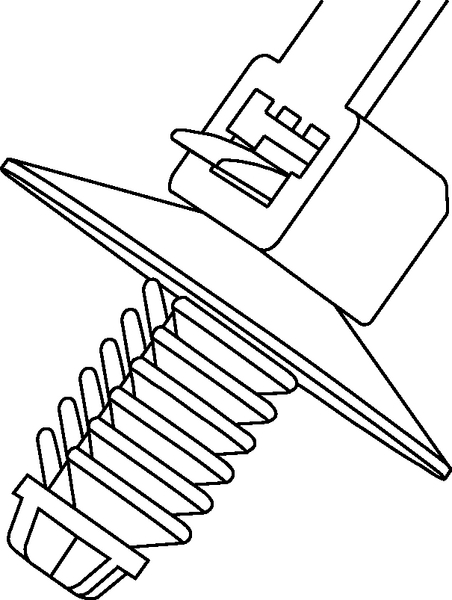

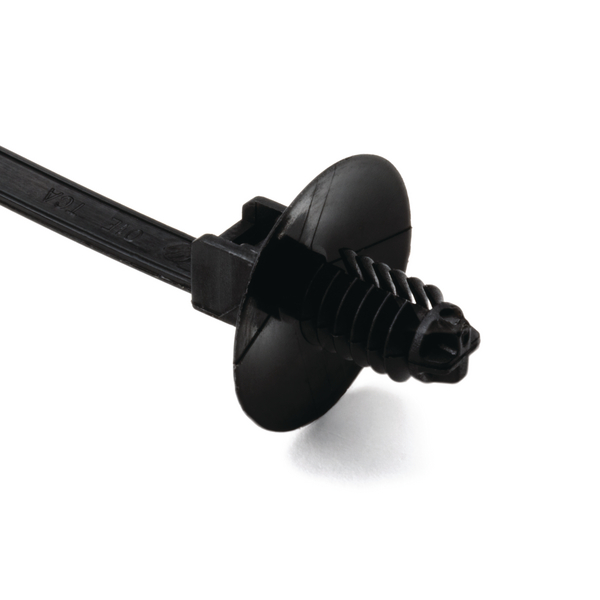

1-Piece Fixing Ties with Fir Tree, with Disc, releasable REL30SDP6

1-Piece Fixing Ties with Fir Tree, with Disc, releasable, Article number: 150-55500

Features

  • Fir tree foot part can be used for a variety of panel thicknesses

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

1-Piece Fixing Ties with Fir Tree, with Disc, releasable is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Releasable 1-Piece Fixing Tie with Fir Tree and Disc PA66HIRHS 170x5.0 black
Fixation Method Fir Tree
GLOBAL PART NAME REL30SDP6-PA66-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, releasable
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, releasable
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type REL30SDP6.NB6P
Variant Inside Serrated
Bundle ∅ max. 31.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 22.0mm
for Hole ∅ (FH) 6.3 - 7.1 mm
for Panel Thickness min - max 3 - 7 mm
Length (L) 170.0mm
Min.Tensile Strength 135N
Thickness (T) 1.5mm
Width (W) 5.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660315381
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.61m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0093
Packaging 1 - Weight (kg) 0.9kg
Packaging 1 - Width (m) 0.305m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 4.25kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 106.0kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 3.2kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717
