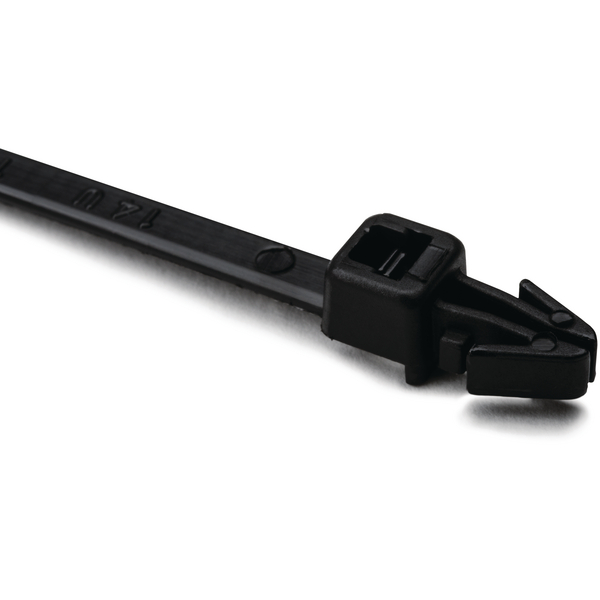

Fixing tie for hole (round), inside serrated, ∅1.6-31.0mm, black, 100pcs.
Art.-No. 126-00700 | T30RSF(U)-PA66HS-BK |  Details

The arrowhead design of this push mount inserts easily and locks securely in place.

    • Easy to assemble without the need for a tool
    • Fixing tie with arrowhead without wings
    • Arrowhead simply locks into place
    • Cable tie head always situated in defined position
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The arrowhead design allows these ties to be used in areas with limited space.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number T30RSF.NB3P
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30RSF(U)-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family T30RSF(U) for max. bundle diameter 31.0 mm
    Product Group 1-Piece Fixing Ties with Arrowhead
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RSF(U)
    Variant Inside Serrated
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 1.6-31.0mm
    Bundle ∅ min. 1.6mm
    Height (H) 5.70mm
    Length (L) 160.02mm
    Min.Tensile Strength 135N
    Panel Thickness max. 0.9 - 2.4mm
    Thickness (T) 1.2mm
    Width (W) 3.6mm
    for Hole ∅ (FH) 4.7 - 5.6 mm
    for Panel Thickness min - max 0.9 - 2.4 mm
    for Panel Thickness min - max 0 - 0.1 "
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026421827
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
