2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50IFT7

Fir Tree Parts FT7, Article number: 156-00901

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT7 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK), Natural (NA)

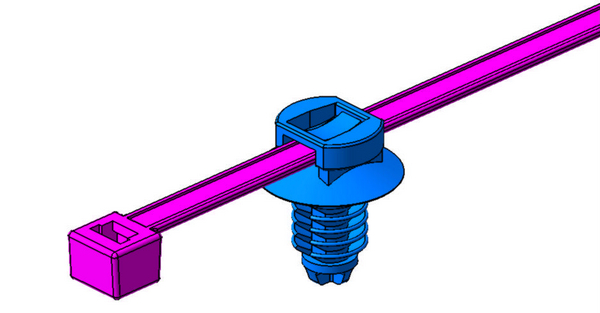

Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 300X4.6 natural/black
Fixation Method Fir Tree
GLOBAL PART NAME T50IFT7-PA66-BK/NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family Fir Tree Parts FT7
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50IFT7.NX3E
Variant Inside Serrated
Bundle ∅ max. 85.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 7 mm
Height (H) 1.2mm
Height (H2) 12.7mm
Length (L) 300mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 11.6mm
Cable Tie Polyamide 6.6 (PA66)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6 (PA66)
Hazardous goods No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Operating Temperature Foot Part (Metric) -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
EAN / GTIN 4031026297279
Packaging 1 - Height (m) 0.071m
Packaging 1 - Length (m) 0.366m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00546
Packaging 1 - Weight (kg) 0.289kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.209m
Packaging 3 - Length (m) 0.575m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0461
Packaging 3 - Weight (kg) 12.388kg
Packaging 3 - Width (m) 0.384m
Packaging 4 - Height (m) 1.19m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.142
Packaging 4 - Weight (kg) 169.656kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 0.646kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
