Fixing tie with pipe/tube holder/for hole (round), Ø50.0mm, black, 500pcs.
Art.-No. 156-01552 | T50RCTC5-9FT7-PA66HS/PA66HIRHS-BK |  Details

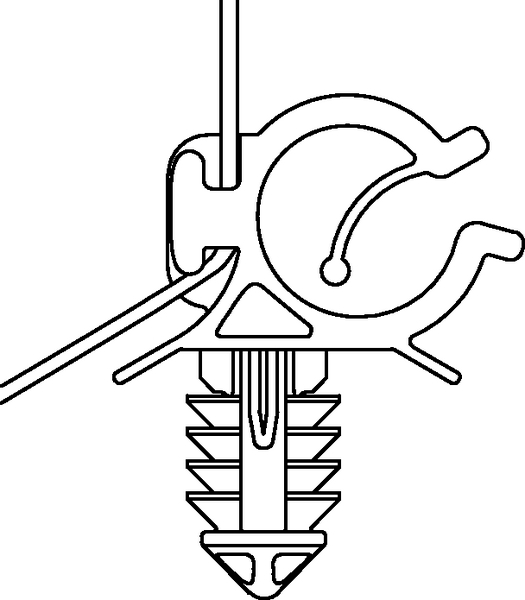

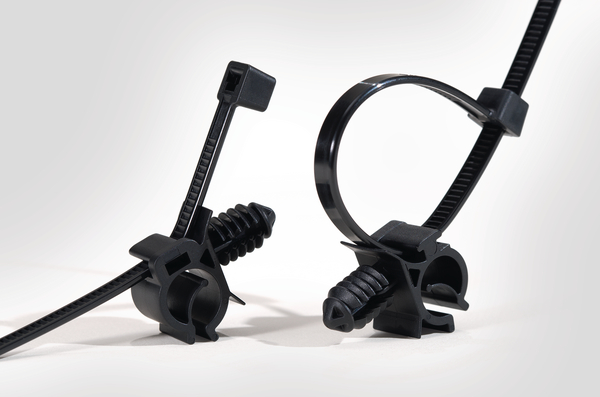

Two Piece Fixing Tie T50RCTC5-9FT7 is used when a tubing needs to be fixed in addition to a cable bundle.

    Add to watchlist

    Request your individual offer now

     Request quote
    Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features rotatable, for multiple routing, removable
    Local order number T50RCTC5-9FT7-HS-HIRHS-BK
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50RCTC5-9FT7-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group 2-Piece Fixing Ties with Pipe Clip and Fir Tree
    Type T50RCTC5-9FT7
    Attach to Ø 5.0 - 9.0
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Length (L) 200.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 - 6.0mm
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.7 - 6 mm
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026535494
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
