2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50RFT5

Fir Tree Parts FT5, Article number: 156-00025

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Fir Tree Parts FT5 is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Fixation Method Fir Tree
Fixing Hole Shape Circular
Global Part Name T50RFT5-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Manufacturer Type T50RFT5 PA66HS/PA66HIRHS BK 500
No. of sides for tie attachment 2
Pack Cont. 500pcs.
Product Family Fir Tree Parts FT5
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Quantity per Bag
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RFT5.HB6P
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
Height (H) 1.2mm
Height (H2) 6.9mm

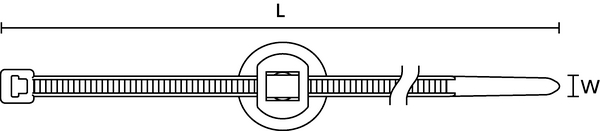

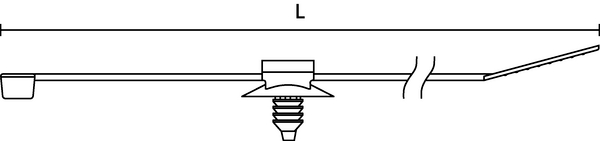

Length (L) 200mm
Length (L2) 11.6mm
Length (L3) 13.2mm
Length of Fir Tree 6.9mm
Min.Tensile Strength 225N
Width (W) 4.6mm
Width (W3) 5.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +110 °C
Specifications
EAN / GTIN 4031026251806
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 0.9825kg
Packaging 1 - Width (m) 0.45m
Packaging 2 - Qty 1
Packaging 2 - Type Carton
Packaging 2 - Weight (kg) 0.02kg
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.68kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 125.208kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.3kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
