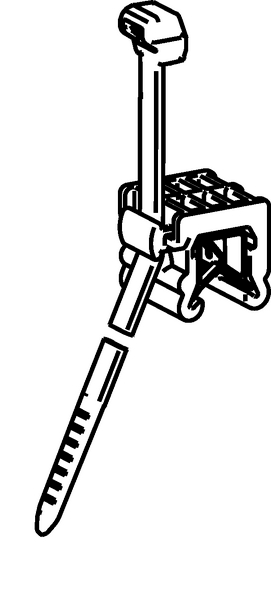

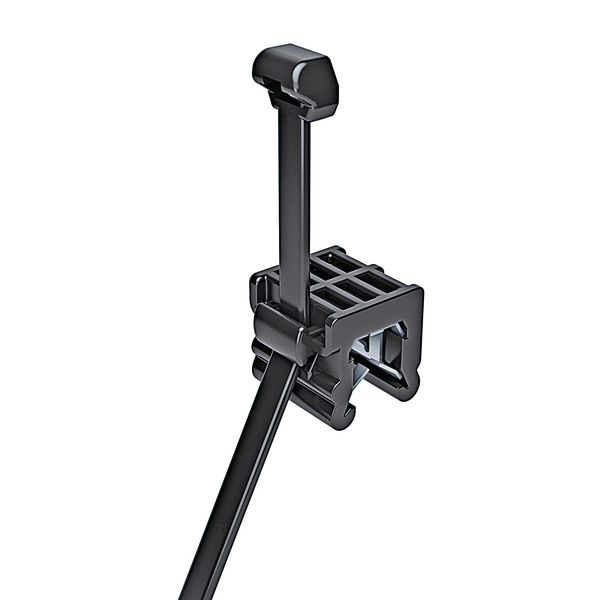

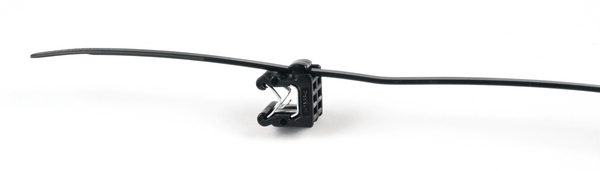

2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm T50ROSEC23

EdgeClip-Family, Article number: 156-00006

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • For minimum bundle diameters of 1 mm
  • For edges of 3 – 6 mm

Certifications & Approvals

Application

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

EdgeClip-Family is suitable for following markets and industries

Anti rotation (Yes / No) YES
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie 200x4.6 for Edges 3-6 mm HS-black
Features and Benefits The Edge Clips are produced as two part mounting clips for edge mounting of 3.0 to 6.0mm. The 'loose' tie means the head can be rotated during fitting for installation in the best position with respect to the tie closure. Combined with our outside-serrated (OS) ties, they reduce the risk of chafe and cable damage by offering a smooth surface to the cable insulation and are suitable for minimum bundle diameters of 1.0mm.
Fixation Method EdgeClip, sideway, assembled, 2 piece
GLOBAL PART NAME T50ROSEC23-PA66HS/PA66HIRHS-BK
Identification Plate Position none
No. of sides for tie attachment 2
Pack Cont. 500pcs.
Package Quantity per Bag
Product Family EdgeClip-Family
Product Group 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
Releasable Closure (Yes/No) No
Type T50ROSEC23.HB6P
Variant Outside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 1.0mm
for Panel Thickness min - max 3 - 6 mm
Height (H) 1.3mm
Height (H2) 14.6mm

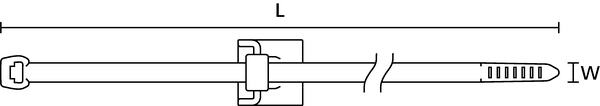

Length (L) 200.0mm
Length (L2) 14.8mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
Width (W2) 15.9mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB

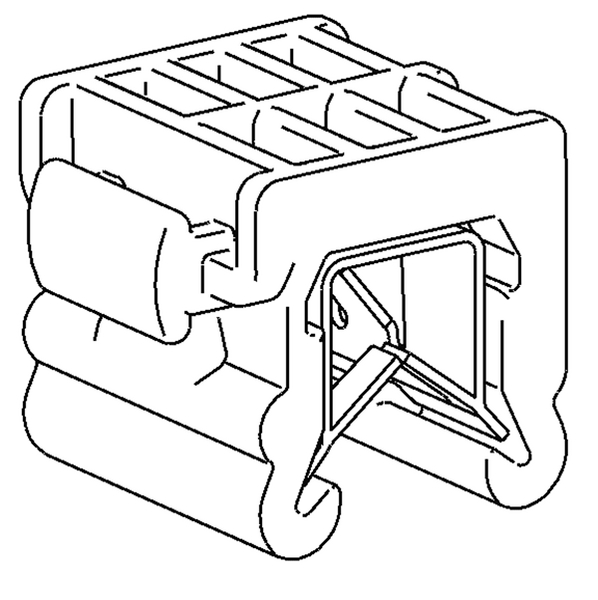

Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous goods No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026240008
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.7775kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.485kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 158.856kg
Packaging 4 - Width (m) 0.8m
Packaging Content SKU Unit pieces
Weight 2.73kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
